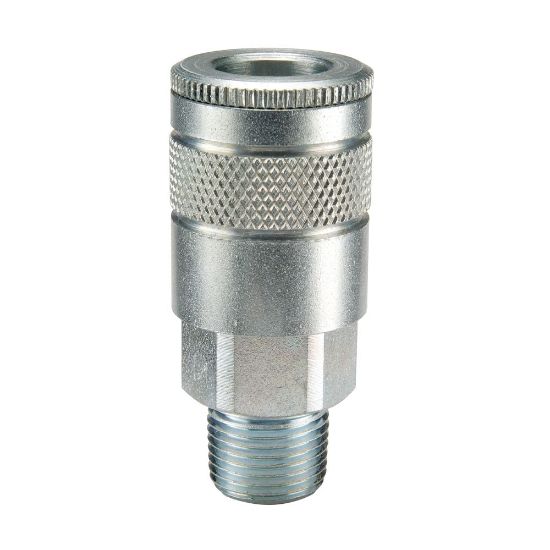

16E - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:

1 Limited Stock

TOPEKA, KS

Partner Available:

105 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 16E

$33.26/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Body Size (inch)	1/2	Connection Thread Size (inch)	3/8 - 18
Thread Style	Male	Connection Type	NPTF
Connection Hose I.D. (inch)	na	Minimum Operating Temperature	-40 °F
Body Material	Steel	Seal Material	Nitrile
Coupling Half	Coupler	Maximum Operating Temperature	250 °F
Plating Type	Zinc with clear trivalent chromate	Maximum Operating Pressure	300 psi
Valve Type	Tubular	Lock Type	Locking balls
Sleeve Type	Manual	Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Media	Low pressure fluids and compressed air
