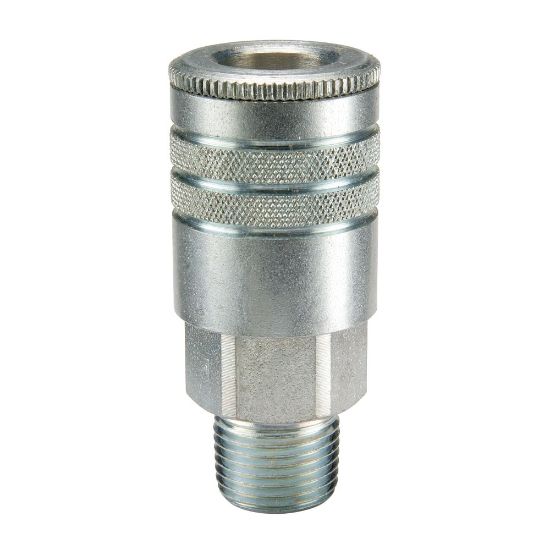

Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series - 24F

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:

29 in stock

Kansas City, KS	17
WICHITA, KS	4
Springfield, MO	2
COLUMBIA, MO	2
Kansas City, KS	2
Peoria, IL	2

SKU 24F

$31.87

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Body Size (inch)	3/8	Thread Style	Male
Connection Thread Size (inch)	1/2 - 14	Connection Type	NPTF
Connection Hose I.D. (inch)	na	Minimum Operating Temperature	-40 °F
Body Material	Steel	Division	Quick Coupling Division
Seal Material	Nitrile	Coupling Half	Coupler
Maximum Operating Temperature	250 °F	Plating Type	Zinc with clear trivalent chromate
Maximum Operating Pressure	300 psi	Application	Air
Valve Type	Tubular	Lock Type	Locking balls
Sleeve Type	Manual	Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Media	Low pressure fluids and compressed air	Dimensional Weight	0.07997601918465227 lb
