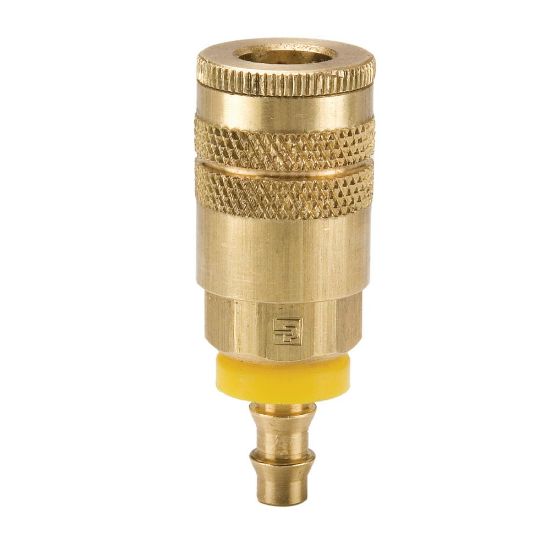

B20-3BPN - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	8 in stock

SKU B20-3BPN

$24.04/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Body Size (inch)	1/4	Connection Thread Size (inch)	na
Connection Type	Push-Lok hose barb	Thread Style	na
Connection Hose I.D. (inch)	1/4	Minimum Operating Temperature	-40 °F
Body Material	Brass	Seal Material	Nitrile
Coupling Half	Coupler	Maximum Operating Temperature	250 °F
Maximum Operating Pressure	300 psi	Valve Type	Tubular
Lock Type	Locking balls	Sleeve Type	Manual
Media	Low pressure fluids and compressed air	Plating Type	na
Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B)
