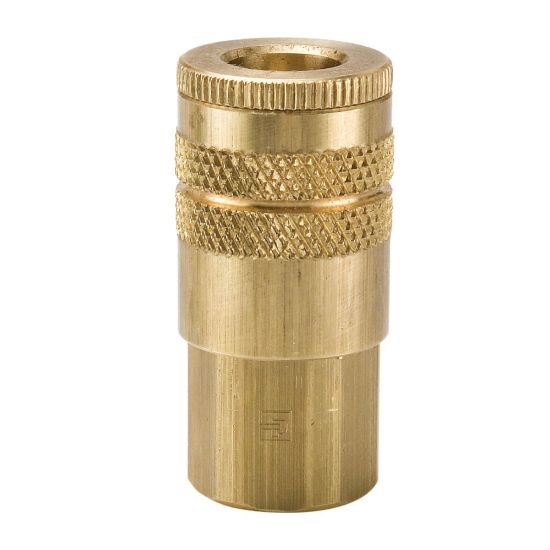

Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series - B23Y

Name: Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series - B23Y
SKU: B23Y

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:

Backordered

SKU B23Y

$21.81

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Body Size (inch)	1/4	Connection Thread Size (inch)	1/4 - 18
Thread Style	Female	Connection Type	NPTF
Connection Hose I.D. (inch)	na	Body Material	Brass
Division	Quick Coupling Division	Coupling Half	Coupler
Maximum Operating Temperature	400 °F	Maximum Operating Pressure	300 psi
Seal Material	Fluorocarbon	Application	Air
Minimum Operating Temperature	-30 °F	Valve Type	Tubular
Lock Type	Locking balls	Sleeve Type	Manual
Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B	Media	Low pressure fluids and compressed air
Plating Type	na
