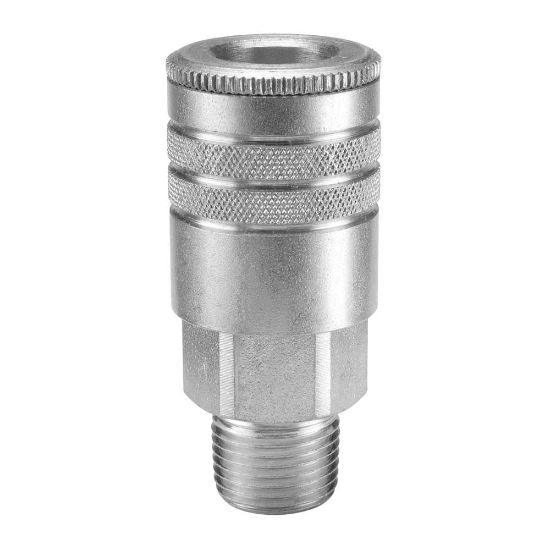

S22 - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	42 in stock

SKU S22

$98.83/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	1/4 - 18
Body Size (inch)	1/4	Thread Style	Male
Connection Type	NPTF	Body Material	Stainless steel (303)
Connection Hose I.D. (inch)	na	Body Material	Stainless Steel
Seal Material	Nitrile	Maximum Operating Pressure	300 psi
Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B	Media	Low pressure fluids and compressed air
Lock Type	Locking balls	Coupling Half	Coupler
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Dimensional Weight	0.02670863309352518 lb	Sleeve Type	Manual
Plating Type	na	Valve Type	Tubular

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)
