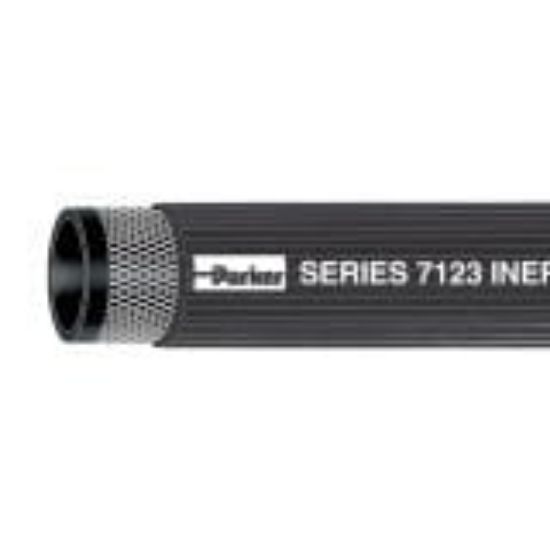

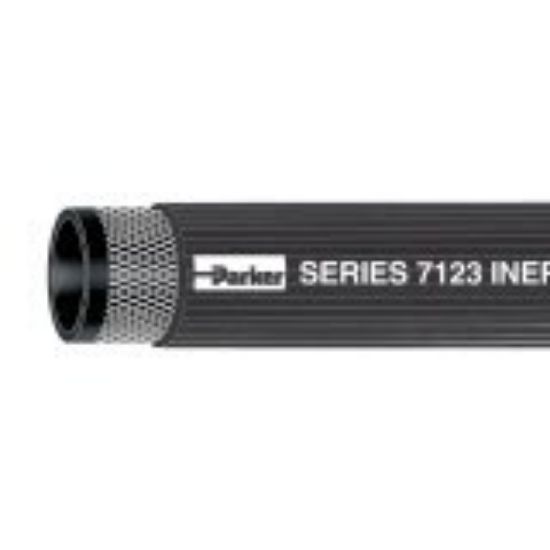

7123-25200 - Inert Gas Hose for Arc Welding Systems, Series 7123

Note: This product is no longer available - please contact us for further assistance

Availability:	Backordered Estimated Lead Time: 118 days
Partner Available:	Backordered

SKU 7123-25200

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/4
Maximum Working Pressure (psi)	200	Media	Air
Minimum Operating Temperature	-40	Design Factor	4:1
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Minimum Bend Radius	3
Weight	0.09	Cover Color	Black
Hose Reinforcement Material	2 Plies of Textile	Maximum Operating Pressure	200
Inside Diameter	1/4	Package Type	Reel
Outside Diameter	0.500	Length per Package	250
Maximum Operating Temperature	200	Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)
Specifications Met	CGA E-1

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)

Distributor Support

Welding Hose Safety Bulletin (PDF)
