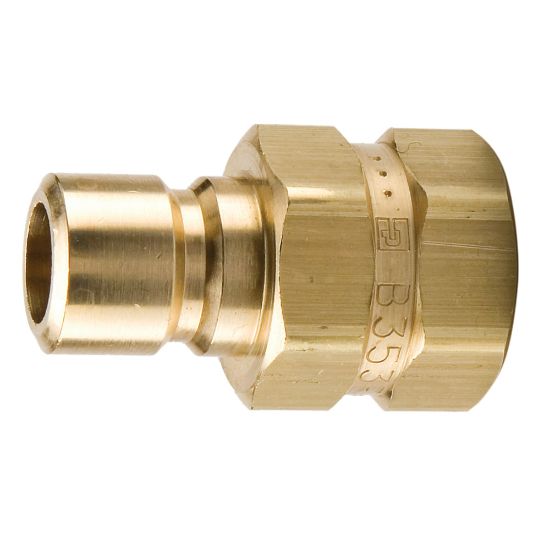

BPN252F - Injection Molding, Coolant Quick Couplings - Moldmate Series

Name: BPN252F - Injection Molding, Coolant Quick Couplings - Moldmate Series
SKU: BPN252F
Price: 4.75 USD
Availability: InStock

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Availability:

31 in stock

Olivette, MO	19
Kansas City, KS	12

Partner Available:

130 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU BPN252F

$4.75/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Female NPTF
Coupling Half	Male Nipple	Body Material	BRASS
Body Size (inch)	1/4	Flow Rate	3
Connection Thread Size (inch)	1/4 - 18	Connection Hose I.D. (inch)	na
Valve Style	Unvalved	Maximum Operating Temperature	400 °F
Seal Material	na	Minimum Operating Temperature	-20 °F
Maximum Operating Pressure	200 psi	Hex Size	0.63 inch
Dimensional Weight	0.007997601918465227 lb	Plating Type	na
