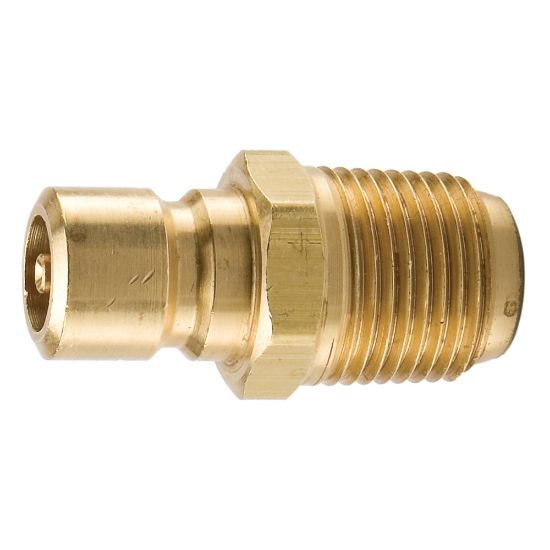

BPV252 - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU BPV252

$15.07/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	3
Valve Style	Poppet	Body Size (inch)	1/4
Connection Thread Size (inch)	1/4 - 18	Body Material	BRASS
Connection Type	Male NPTF	Connection Hose I.D. (inch)	na
Coupling Half	Male Nipple	Plating Type	na
Dimensional Weight	0.006677158273381295 lb	Maximum Operating Pressure	200 psi
Seal Material	Fluorocarbon	Hex Size	0.56 inch
Maximum Operating Temperature	400 °F	Minimum Operating Temperature	-15 °F
