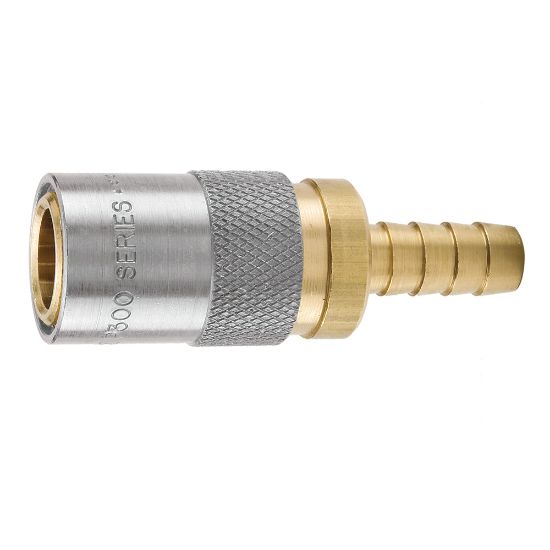

PC204AV - Injection Molding, Coolant Quick Couplings - Moldmate Series

Name: PC204AV - Injection Molding, Coolant Quick Couplings - Moldmate Series
SKU: PC204AV
Price: 24.86 USD
Availability: InStock

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Availability:

17 in stock

Kansas City, KS	12
TOPEKA, KS	5

Partner Available:

55 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU PC204AV

$24.86/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Hose barb
Body Material	BRASS	Connection Thread Size (inch)	na
Connection Hose I.D. (inch)	1/4	Flow Rate	3
Body Size (inch)	1/4	Valve Style	Poppet
Coupling Half	Female Coupler	Seal Material	Silicone - Fluorocarbon
Hex Size	0.63 inch	Maximum Operating Pressure	200 psi
Dimensional Weight	0.01335431654676259 lb	Minimum Operating Temperature	-15 °F
Maximum Operating Temperature	400 °F	Plating Type	Zinc with clear trivalent chromate on sleeve
