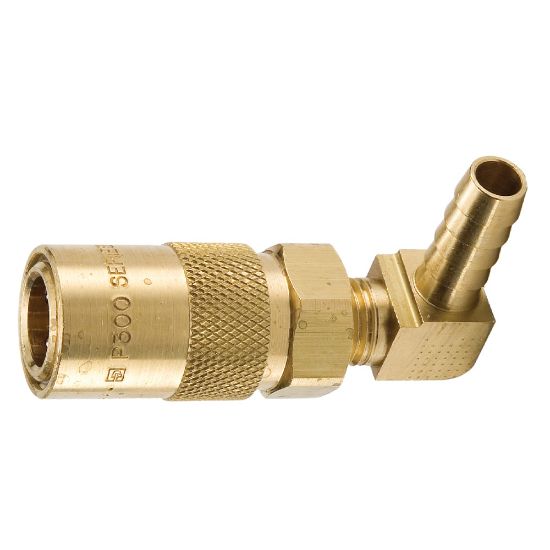

PC214 - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	15 in stock

SKU PC214

$19.90/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Hose barb, 90 degree
Coupling Half	Female Coupler	Flow Rate	3
Body Material	BRASS	Body Size (inch)	1/4
Connection Hose I.D. (inch)	1/4	Valve Style	Unvalved
Connection Thread Size (inch)	na	Minimum Operating Temperature	-20 °F
Maximum Operating Pressure	200 psi	Hex Size	0.63 inch
Plating Type	na	Maximum Operating Temperature	400 °F
Seal Material	Silicone	Dimensional Weight	0.02670863309352518 lb

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
