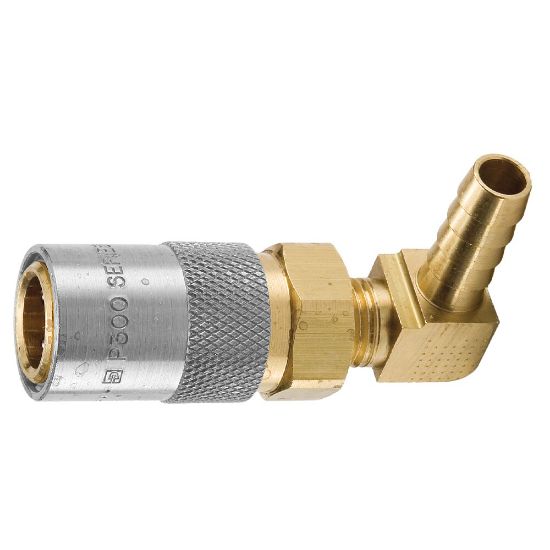

PC214AV - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU PC214AV

$26.72/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Hose I.D. (inch)	1/4
Body Material	BRASS	Flow Rate	3
Connection Type	Hose barb, 90 degree	Body Size (inch)	1/4
Valve Style	Poppet	Coupling Half	Female Coupler
Connection Thread Size (inch)	na	Maximum Operating Pressure	200 psi
Hex Size	0.63 inch	Plating Type	Zinc with clear trivalent chromate on sleeve
Seal Material	Silicone - Fluorocarbon	Minimum Operating Temperature	-15 °F
Maximum Operating Temperature	400 °F	Dimensional Weight	0.02670863309352518 lb
