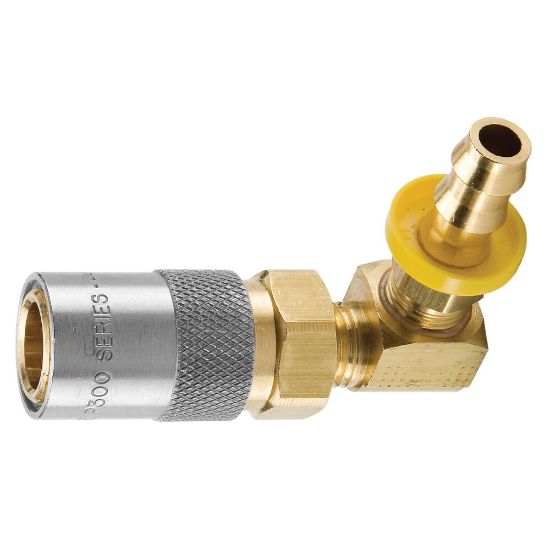

PC214AV-BP - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU PC214AV-BP

$27.69/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	na
Connection Type	Push-Lok hose barb, 90 degree	Coupling Half	Female Coupler
Body Material	BRASS	Body Size (inch)	1/4
Flow Rate	3	Connection Hose I.D. (inch)	1/4
Valve Style	Poppet	Maximum Operating Temperature	400 °F
Minimum Operating Temperature	-15 °F	Dimensional Weight	0.02670863309352518 lb
Hex Size	0.63 inch	Maximum Operating Pressure	200 psi
Plating Type	Zinc with clear trivalent chromate on sleeve	Seal Material	Silicone - Fluorocarbon
