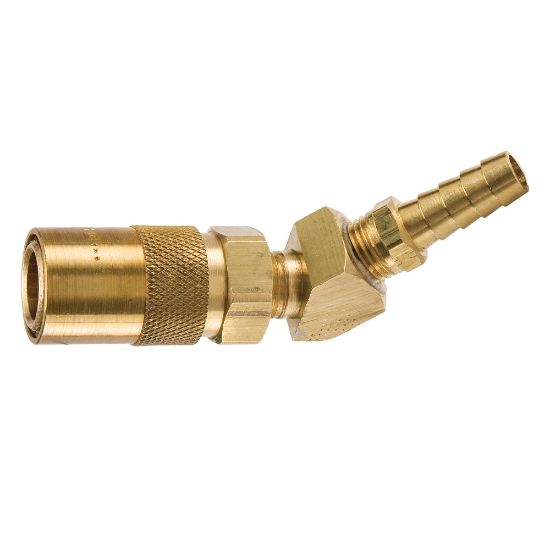

PC224 - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU PC224

$19.93/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	na
Body Size (inch)	1/4	Flow Rate	3
Coupling Half	Female Coupler	Connection Type	Hose barb, 45 degree
Connection Hose I.D. (inch)	1/4	Body Material	BRASS
Valve Style	Unvalved	Seal Material	Silicone
Maximum Operating Temperature	400 °F	Minimum Operating Temperature	-20 °F
Dimensional Weight	0.02748021582733813 lb	Plating Type	na
Hex Size	0.63 inch	Maximum Operating Pressure	200 psi

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
