*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

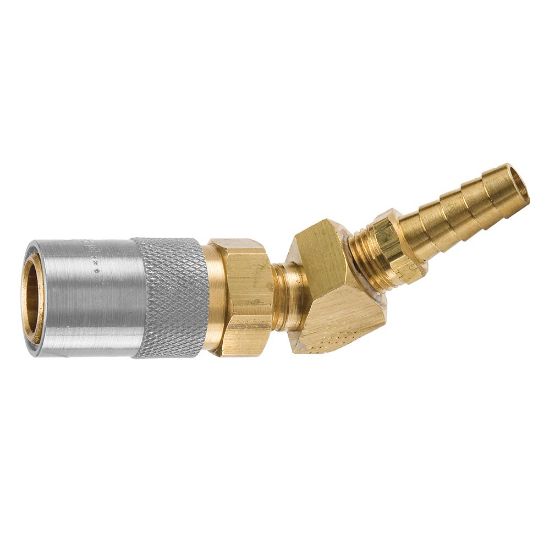

PC326V - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU PC326V

$36.60/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	3/8
Flow Rate	6	Connection Hose I.D. (inch)	3/8
Valve Style	Poppet	Coupling Half	Female Coupler
Connection Type	Hose barb, 45 degree	Body Material	BRASS
Connection Thread Size (inch)	na	Minimum Operating Temperature	-15 °F
Maximum Operating Temperature	400 °F	Plating Type	Zinc with clear trivalent chromate on sleeve
Dimensional Weight	0.05496043165467626 lb	Hex Size	0.88 inch
Seal Material	Silicone - Fluorocarbon	Maximum Operating Pressure	200 psi

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
