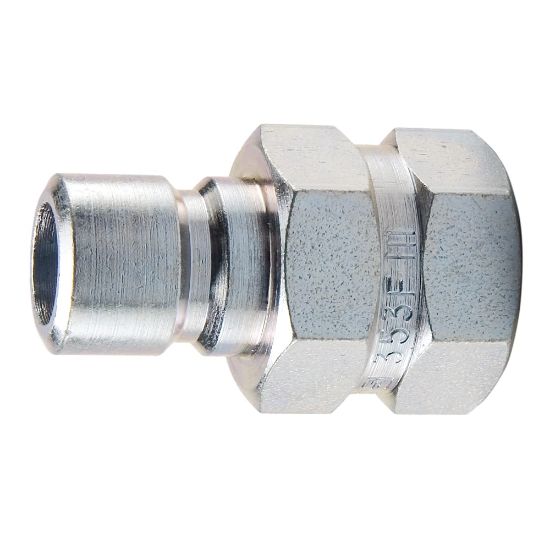

PN251F - Injection Molding, Coolant Quick Couplings - Moldmate Series

Name: PN251F - Injection Molding, Coolant Quick Couplings - Moldmate Series
SKU: PN251F
Price: 5.78 USD
Availability: InStock

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Availability:

20 in stock

Kansas City, KS	14
Springfield, MO	4
Decatur, IL	2

Partner Available:

866 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU PN251F

$5.78/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	1/8 - 27
Coupling Half	Male Nipple	Connection Type	Female NPTF
Body Material	Steel	Body Size (inch)	1/4
Flow Rate	3	Valve Style	Unvalved
Connection Hose I.D. (inch)	na	Maximum Operating Temperature	400 °F
Seal Material	na	Minimum Operating Temperature	-20 °F
Maximum Operating Pressure	200 psi	Hex Size	0.50 inch
Plating Type	Zinc with clear trivalent chromate	Dimensional Weight	0.007997601918465227 lb

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
