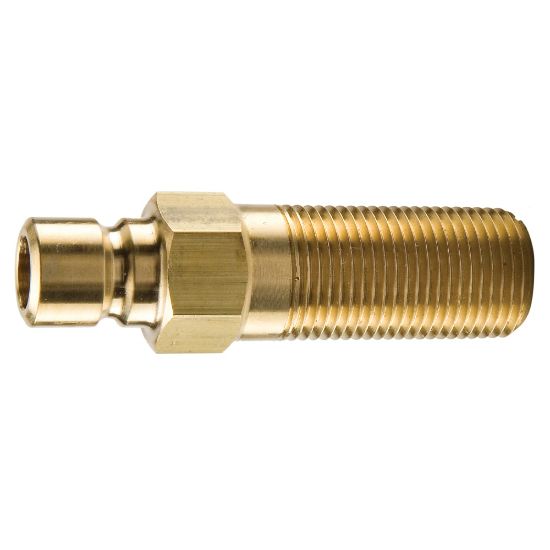

PN352-40 - Injection Molding, Coolant Quick Couplings - Moldmate Series

Name: PN352-40 - Injection Molding, Coolant Quick Couplings - Moldmate Series
SKU: PN352-40
Price: 15.78 USD
Availability: InStock

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Availability:

21 in stock

Kansas City, KS	20
Springfield, MO	1

Partner Available:

10 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU PN352-40

$15.78/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	1/4 - 18
Connection Hose I.D. (inch)	na	Body Material	BRASS
Valve Style	Unvalved	Coupling Half	Male Nipple
Body Size (inch)	3/8	Flow Rate	6
Connection Type	Male NPTF (extended length)	Hex Size	9/16 inch
Plating Type	na	Maximum Operating Pressure	200 psi
Maximum Operating Temperature	400 °F	Seal Material	na
Minimum Operating Temperature	-20 °F

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
