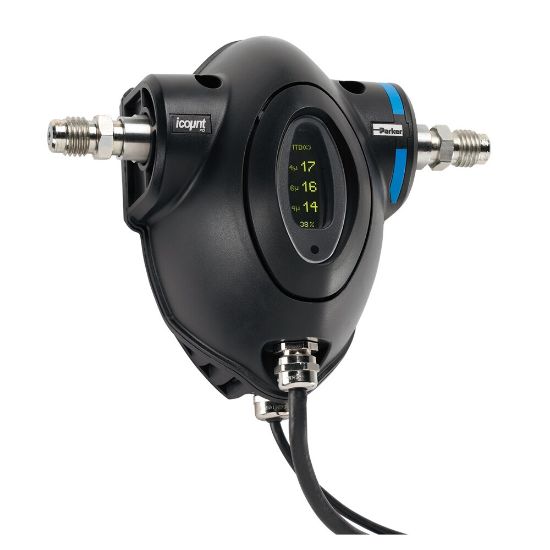

IPD12222130 - Inline Particle Monitor – iCountPD

The Parker iCountPD is a highly compact, permanently mounted laser detection particle size monitor that enables continuous monitoring of contamination levels in hydraulic and fluid circuits.Capable of communicating results in ISO4406 / AS4059 or NAS1638.

Availability:	Backordered Estimated Lead Time: 80 days
Partner Available:	Backordered

SKU IPD12222130

$3,564.81/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Options	n/a
Port Type	M12, 8-pin plug connector	Signal Output	4 to 20 mA
For Fluid Type	Mineral Oil	Indicator Type	LED
Housing Material	ABS	ATEX Specifications Met	n/a
Limit Alarm Relay Included	Yes	Port Type	Metric
Body Material	Brass	Seal Material	Fluorocarbon
Specifications Met	CE Certification	Communication Interface	RS232
Maximum Fluid Temperature	80 °C	Weight	1.3 kg
Product Style	Particle Detector/Counter	Sensing Method	Laser
Minimum Fluid Temperature	5 °C	Industry	Industrial & Chemical Processing
Operating Pressure	2 to 420 bar	Flow Rate	60 L/min
Cycle Time	30 second	Ingress Protection Rating	IP66
For Fluid Type	Mineral oils and petroleum based fluids	Height	155
Length	182 mm	Accuracy	+/- 1 ISO code
Port Size	M16 x 2 hydraulic test points	Signal Output	4 to 20 mA
Operating Humidity	5 to 100% (RH)	Electrical Requirements	9 to 40
Materials of Construction	Housing: ABS
