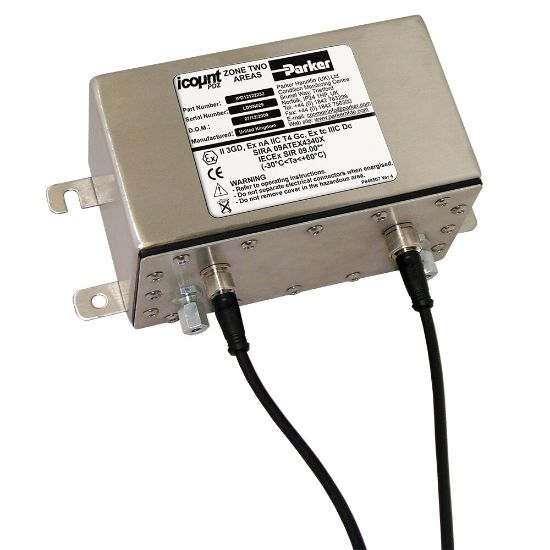

IPDZ12122230 - Inline Particle Monitor – iCountPD

The Parker iCountPD is a highly compact, permanently mounted laser detection particle size monitor that enables continuous monitoring of contamination levels in hydraulic and fluid circuits.Capable of communicating results in ISO4406 / AS4059 or NAS1638.

Availability:	Backordered Estimated Lead Time: 141 days
Partner Available:	Backordered

SKU IPDZ12122230

$6,370.66/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Housing Material	Stainless Steel
Options	Moisture Sensor	Port Type	M12, 8-pin plug connector
Signal Output	4 to 20 mA	For Fluid Type	Mineral Oil
Limit Alarm Relay Included	Yes	Indicator Type	No Display on unit
ATEX Specifications Met	ATEX Zone II	Body Material	Brass
Industry	Industrial Manufacturing Equipment	Seal Material	Fluorocarbon
Ingress Protection Rating	IP69K	Specifications Met	CE Certification
Communication Interface	RS232	Maximum Fluid Temperature	80 °C
Product Style	Particle Detector/Counter	Sensing Method	Laser
Minimum Fluid Temperature	5 °C	Flow Rate	60 L/min
Cycle Time	30 second	Weight	2.6 kg
For Fluid Type	Mineral oils and petroleum based fluids	Operating Pressure	30 to 6000 psi
Accuracy	+/- 1 ISO code	Signal Output	4 to 20 mA
Operating Humidity	5 to 100% (RH)	Electrical Requirements	9 to 40 VDC
Height	114 mm	Length	260 mm
Port Size	06L EO 24° cone	Port Type	24° Cone EO compression
Materials of Construction	Housing: Stainless Steel	ATEX Specifications Met	ATEX Zone II
