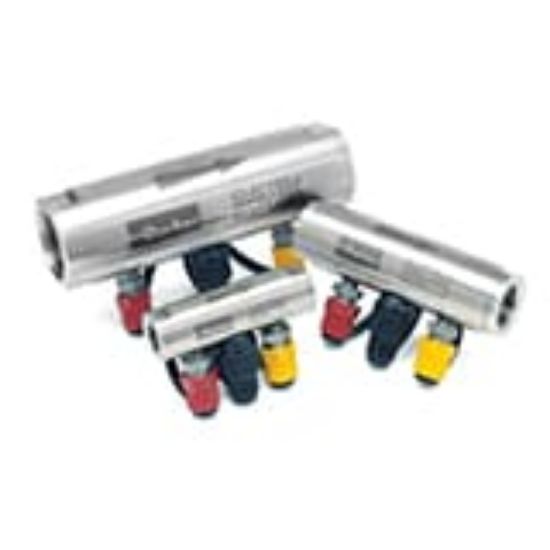

STI2148100 - Inline Sensors & Monitors for emulsion oils - System 20

System 20 monitors, combined with the inline sensor, give the user accurate and instant readings of oil or water flow, pressure and temperature without the need to shut down the system.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU STI2148100

Products specifications

Attribute name	Attribute value
UOM	EA	Size	2
For Fluid Type	Aggressive	Flow Rate	80-380 l/min
Port Size	1¼"	Thread Size	G1 1/4
Maximum Fluid Temperature	110 °C	Weight	4.4 kg
Specifications Met	CE Certification	Product Style	Flow Meter
Length	231 mm	Seal Material	EPDM
Industry	Industrial Manufacturing Equipment	Port Type	BSP
Minimum Fluid Temperature	-10 °C	Height	73.5 mm
Diameter	67 mm	Materials of Construction	Stainless Steel
Accuracy	+/- 2.5% FSD	Sensing Method	Differential Pressure
Body Material	Stainless Steel	Operating Pressure	6000 psi

Product resources

Literature and Reference Materials

Learn more about the System20 (PDF)
