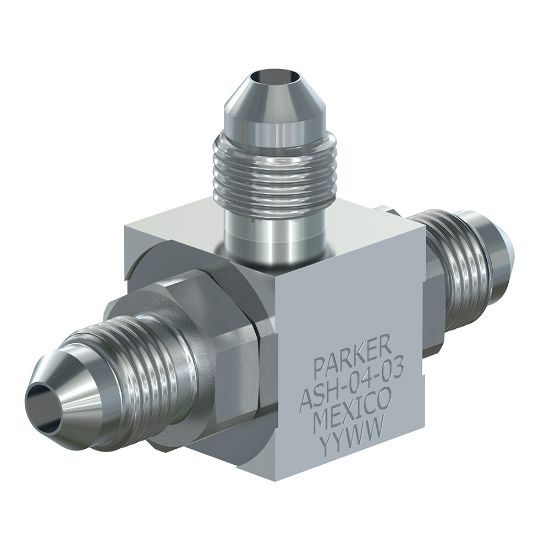

Picture of Inline Shuttle Valves - ASH-04-03

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Inline Shuttle Valves - ASH-04-03

REGIONAL - Parker's ball type inline shuttle valves are plumbed external from manifolds and line bodies and are available in two flow size options of 11 lpm (3 gpm) or 22 lpm (6 gpm), and pressures up to 207 bar (3000 psi).
Availability:
Backordered
SKU ASH-04-03
$79.39
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAFlow Rate3 GAL/MIN, 11 L/MIN
Body MaterialSteelMaximum Inlet Pressure Rating3000 psi
Flow Rate11 L/minMaximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
For Fluid TypeMineral-based Hydraulic FluidsFunctionShuttle
DivisionHydraulic Systems DivisionOperation TypeAutomatic
Maximum Operating Temperature121 °COperating Temperature-34 to 121 °C
ConfigurationInlineMaximum Operating Pressure3000 psi
Leak Rate5DivisionHydraulic Cartridge Systems Division
Seal MaterialNitrileWeight0.8 lb
Filter Efficiency RatingSAE Class 4Maximum Flow Rate3 Gal/min
Minimum Operating Temperature-30 °FActuation TypePressure Sensing
