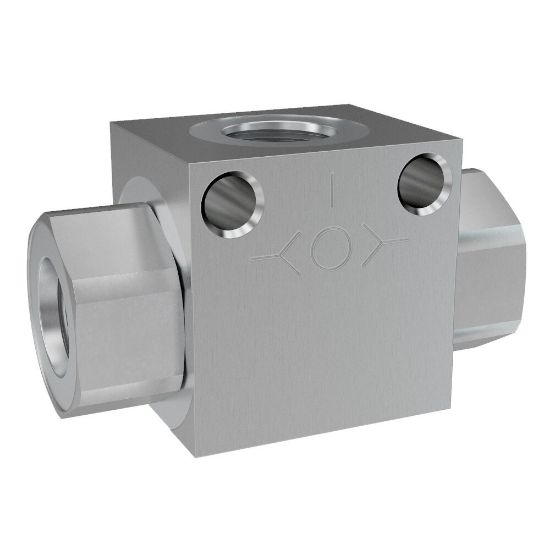

Picture of Inline Shuttle Valves - ASH-06-2

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Inline Shuttle Valves - ASH-06-2

REGIONAL - Parker's ball type inline shuttle valves are plumbed external from manifolds and line bodies and are available in two flow size options of 11 lpm (3 gpm) or 22 lpm (6 gpm), and pressures up to 207 bar (3000 psi).
Availability:
Backordered
SKU ASH-06-2
$67.86
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAFlow Rate6 GAL/MIN, 22 L/MIN
Flow Rate22 L/minMinimum Operating Temperature-30 °F
ConfigurationInlineOperating Temperature-34 to 121 °C
Maximum Operating Pressure3000 psiMaximum Flow Rate6 Gal/min
Leak Rate5For Fluid TypeSynthetic Hydraulic Fluids
Actuation TypePressure SensingDivisionHydraulic Cartridge Systems Division
Seal MaterialNitrileOperation TypeAutomatic
Body MaterialSteelMaximum Operating Temperature250 °F
Filter Efficiency RatingISO 4406 18/16/13Weight1 lb
DivisionHydraulic Systems DivisionMaximum Inlet Pressure Rating207 bar
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)FunctionShuttle
