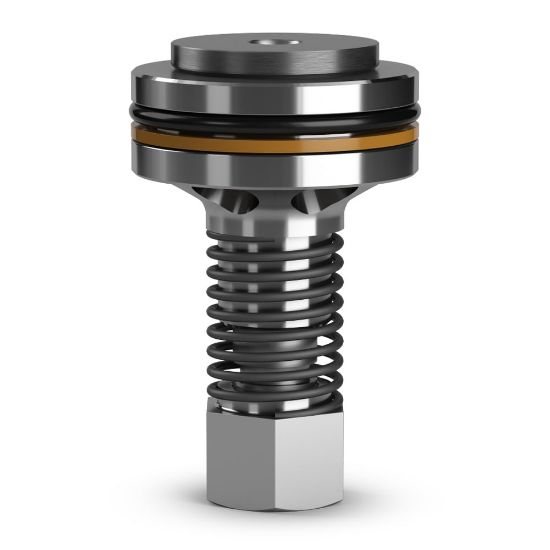

Insert Check Valves - D1B125-0.1V

Name: Insert Check Valves - D1B125-0.1V
SKU: D1B125-0.1V

Parker’s ball and poppet style check valves are cartridges designed to be inserted inside manifolds and can handle flow up to 500 lpm (132 gpm) and pressures at 420 bar (6,000 psi) for circuit optimization and space savings.

Availability:

Backordered

SKU D1B125-0.1V

POR

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Cracking Pressure	1.5 PSI, 0.1 BAR
Flow Rate	132 GAL/MIN, 500 L/MIN	Connection Size	n/a
Connection Type	n/a	Maximum Operating Temperature	204 °C
Weight	0.13 lb	Seal Material	Fluorocarbon
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
For Fluid Type	Mineral-based Hydraulic Fluids	Operating Temperature	-26 to 204 °C
Filter Efficiency Rating	SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-26 °C	Maximum Operating Pressure	420 bar
Actuation Type	Pressure Sensing	Division	Mobile Hydraulic Systems Division Europe
Operation Type	Automatic	Valve Material	Hardened Steel (all operating parts)
Maximum Inlet Pressure Rating	6000 psi	Flow Direction	1-2 Free Flow
Mounting Type	Inside Manifolds	Configuration	Insert
Flow Rate	132 Gal/min	Maximum Flow Rate	132 Gal/min
Function	Check	Leak Rate	3 drops/min
Cavity Size	2C	Cracking Pressure	0.1 bar
