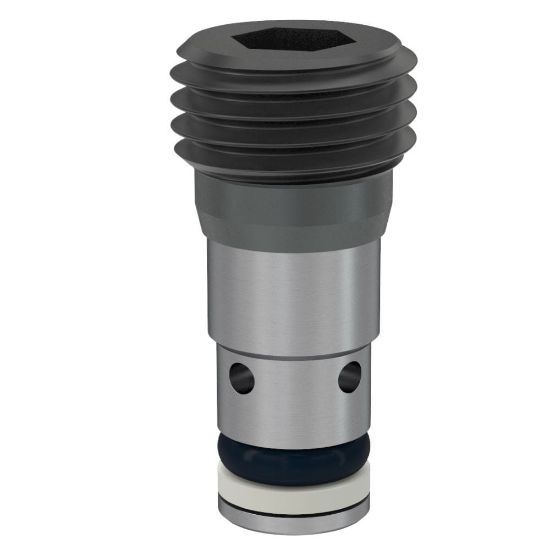

Picture of Insert Shuttle Valves - KSWA3N

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Insert Shuttle Valves - KSWA3N

Parker's insert type shuttle valves for countersinking inside manifolds are available as either poppet or ball type; capable of flows up to 38 lpm (10 gpm) and pressures up to 420 bar (6000 psi).
Availability:
Backordered
SKU KSWA3N
$40.89
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAFlow Rate2.5 GAL/MIN, 9.5 L/MIN
Seal MaterialNitrileInstallation Torque10 Nm
Maximum Operating Temperature+121 °CMinimum Operating Temperature-34 °C
FunctionShuttleMaximum Inlet Pressure Rating6000 psi
Cavity SizeCAVSW-3Valve MaterialAll parts steel. All operating parts hardened steel
ConfigurationInsertMaximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
Filter Efficiency RatingISO 4406 18/16/13, SAE Class 4Leak Rate10 @ 5000 PSI (350 BAR) drops/min
Body Materialn/aFor Fluid TypeMineral-based or synthetic hydraulic fluids
Operation TypeAutomaticMaximum Operating Pressure420 bar
Maximum Flow Rate2.5 Gal/minActuation TypePressure Sensing
Weight0.01 kgFlow Rate2.5 Gal/min
DivisionHydraulic Cartridge Systems DivisionSeal MaterialNitrile
Operating Temperature-30 to +250 °FDivisionMobile Hydraulic Systems Division Europe
