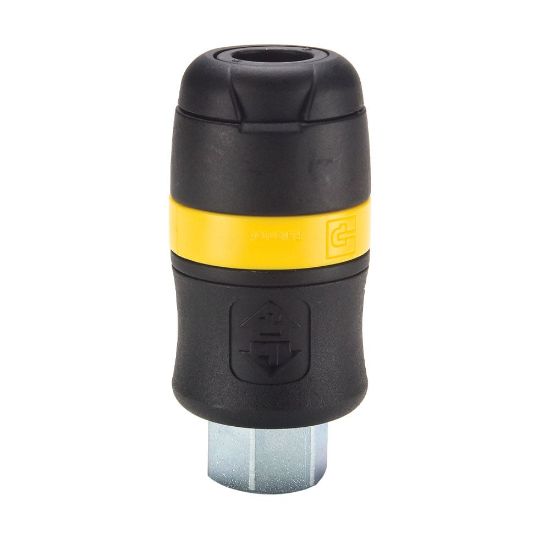

PBS-251-4FP - ISO 4414 Industrial & European Interchange, Safety Quick Connect Air Couplers - Tool-Mate Exhaust Series

Name: PBS-251-4FP - ISO 4414 Industrial & European Interchange, Safety Quick Connect Air Couplers - Tool-Mate Exhaust Series
SKU: PBS-251-4FP
Price: 47.30 USD
Availability: InStock

Parker's pressure venting pneumatic, air quick connect couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.

Availability:

3 in stock

Kansas City, KS

Partner Available:

16 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU PBS-251-4FP

$47.30/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Female, NPTF
Connection Thread Size	1/4"-18	Interface Option	Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B)
Thread Style	Female	Body Size	1/4"
Minimum Operating Temperature	0 °F	Sleeve Type	Push-to-Connect
Seal Material	Nitrile	Specifications Met	ISO 4414 controlled pressure release
Dimensional Weight	0.07194244604316546 lb	Valve Type	Tubular
Coupling Half	Coupler	Body Material	Polyamide
Lock Type	Polyacetate Locking Fingers	Maximum Operating Pressure	300 psi
Media	Compressed Air	Special Option	Exhaust - Venting
Maximum Operating Temperature	160 °F	Plating Type	Galvanized Steel Port Ends

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
