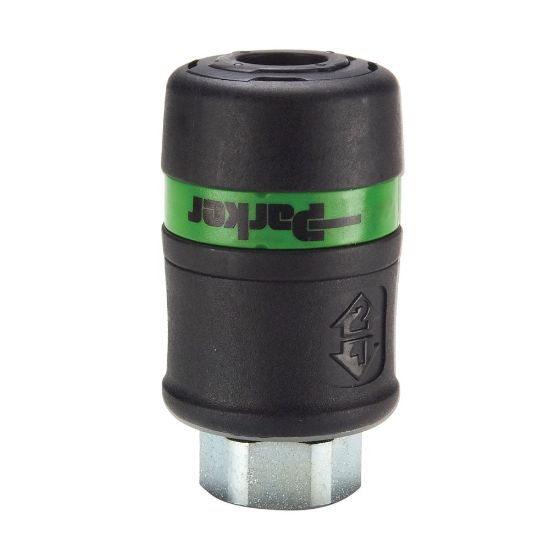

PES-251-4FP - ISO 4414 Industrial & European Interchange, Safety Quick Connect Air Couplers - Tool-Mate Exhaust Series

Parker's pressure venting pneumatic, air quick connect couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	47 in stock

SKU PES-251-4FP

$48.13/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size	1/4"-18
Thread Style	Female	Body Size	1/4"
Connection Type	Female, NPTF	Interface Option	Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B)
Seal Material	Nitrile	Coupling Half	Coupler
Minimum Operating Temperature	0 °F	Maximum Operating Pressure	300 psi
Valve Type	Tubular	Maximum Operating Temperature	160 °F
Media	Compressed Air	Specifications Met	ISO 4414 controlled pressure release
Body Material	Polyamide	Lock Type	Polyacetate Locking Fingers
Sleeve Type	Push-to-Connect	Plating Type	Galvanized Steel Port Ends
Special Option	Exhaust - Venting
