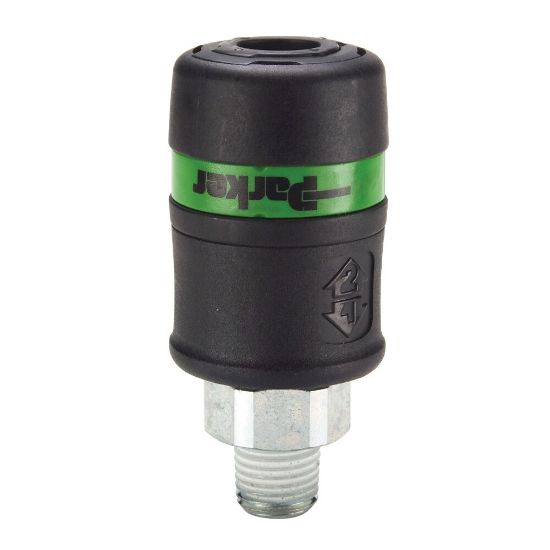

Picture of ISO 4414 Industrial & European Interchange, Safety Quick Connect Air Couplers - Tool-Mate Exhaust Series - PES-251-4MP

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

ISO 4414 Industrial & European Interchange, Safety Quick Connect Air Couplers - Tool-Mate Exhaust Series - PES-251-4MP

Parker's pressure venting pneumatic, air quick connect couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.
Availability:
Backordered
SKU PES-251-4MP
$55.38
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection Thread Size1/4"-18
Thread StyleMaleBody Size1/4"
Connection TypeMale, NPTFInterface OptionConnects with RF style nipples
Dimensional Weight0.07913669064748201 lbDivisionQuick Coupling Division
Seal MaterialNitrileCoupling HalfCoupler
Minimum Operating Temperature0 °FMaximum Operating Pressure300 psi
ApplicationAirValve TypeTubular
Maximum Operating Temperature160 °FMediaCompressed Air
Specifications MetISO 4414 controlled pressure releaseBody MaterialPolyamide
Lock TypePolyacetate Locking FingersSleeve TypePush-to-Connect
Plating TypeGalvanized Steel Port EndsSpecial OptionExhaust - Venting
