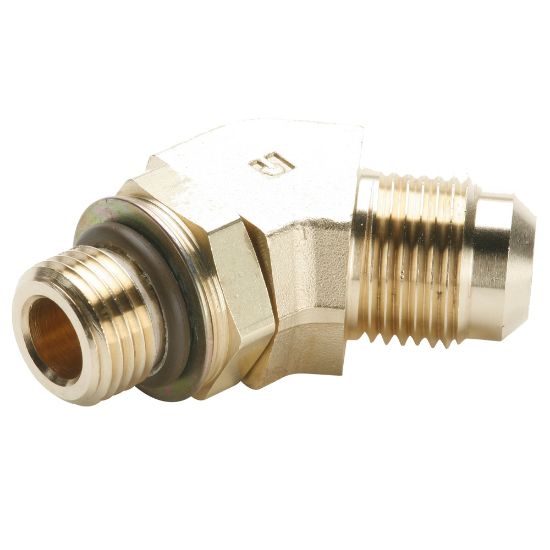

159F-10-MI27 - ISO Port Adapters

Parker's ISO Port Adapters are ideal in systems with high pressure and cycling providing reliable, long-term sealing. ISO port adapters meet dimensional requirements of ISO 6149-3 and SAE 2244-3.

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU 159F-10-MI27

$48.18/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	45° Elbow
Connection 1 Tube O.D. (inch)	5/8	Style	Flare to Metric
Connection 1 Style	Male Flare	Connection 2 Thread Size (inch)	M27x2.0
Body Material	Brass	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-65 °F	Dimensional Weight	0.27594424460431655 lb
Tube Material	Copper, Brass, J844 Type A & B Nylon Tubing	Specifications Met	ISO 6149-3, SAE 2244-3
Maximum Operating Pressure	650 psi	Minimum Operating Pressure	-53 psi
