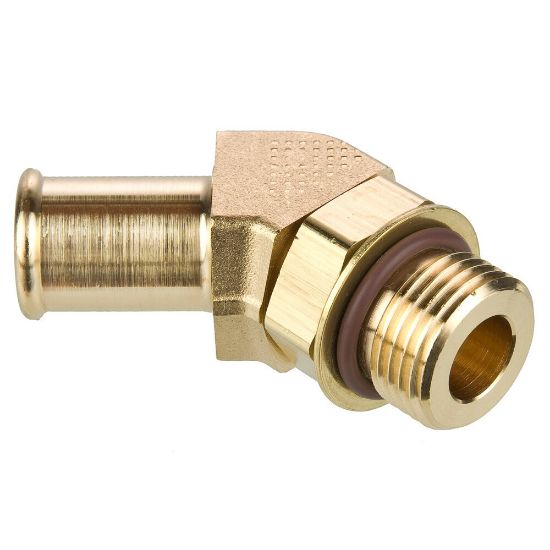

Picture of ISO Port Adapters - 179HB-16-MI27

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

ISO Port Adapters - 179HB-16-MI27

Parker's ISO Port Adapters are ideal in systems with high pressure and cycling providing reliable, long-term sealing. ISO port adapters meet dimensional requirements of ISO 6149-3 and SAE 2244-3.
Availability:
Backordered
SKU 179HB-16-MI27
$59.30
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAShape45° Elbow
Connection 2 Thread Size (inch)M27x2.0Connection 1 Tube O.D. (inch)1
StyleBeaded Hose Barb to MetricConnection 1 StyleBeaded Hose Barb
DivisionFluid System Connectors DivisionMinimum Operating Temperature-40 °F
Body MaterialBrassO-Ring MaterialFluorocarbon
Maximum Operating Pressure10 barTube MaterialCopper, Brass, J844 Type A & B Nylon Tubing
Specifications MetISO 6149-3, SAE 2244-3Maximum Operating Temperature71 °C
Minimum Operating Pressure-40 psi
