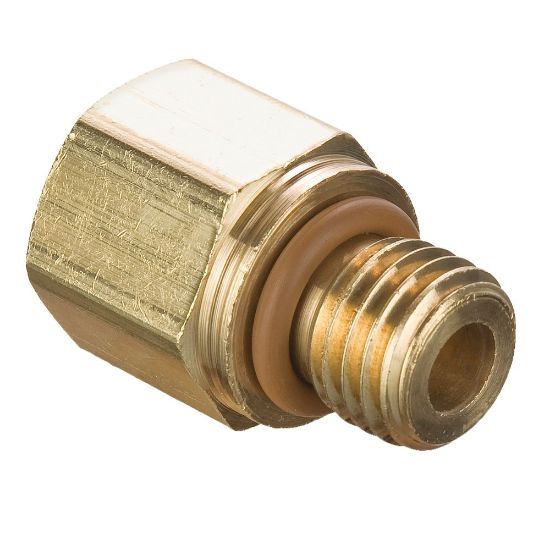

222P-6-MI16 - ISO Port Adapters

Parker's ISO Port Adapters are ideal in systems with high pressure and cycling providing reliable, long-term sealing. ISO port adapters meet dimensional requirements of ISO 6149-3 and SAE 2244-3.

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 222P-6-MI16

$16.55/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Adapter
Connection 1 Tube O.D. (inch)	3/8	Connection 1 Style	Female Pipe
Connection 2 Thread Size (inch)	M16x1.5	Style	Female Pipe to Metric
Maximum Operating Pressure	1000 psi	Body Material	Brass
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-65 °F
Dimensional Weight	0.27594424460431655 lb	Tube Material	Copper, Brass, J844 Type A & B Nylon Tubing
Specifications Met	ISO 6149-3, SAE 2244-3	Minimum Operating Pressure	-53 psi
