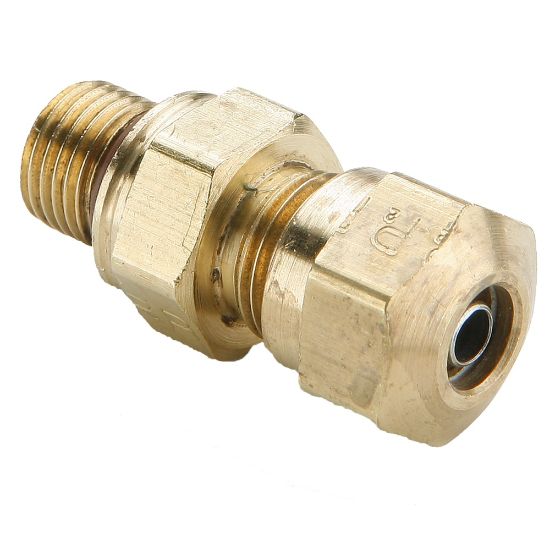

Picture of ISO Port Adapters - 68NTA-4-MI10

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

ISO Port Adapters - 68NTA-4-MI10

Parker's ISO Port Adapters are ideal in systems with high pressure and cycling providing reliable, long-term sealing. ISO port adapters meet dimensional requirements of ISO 6149-3 and SAE 2244-3.
Availability:
Backordered
SKU 68NTA-4-MI10
$17.51
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAStyleCompression to Metric
Connection 2 Thread Size (inch)M10x1.0Connection 1 StyleCompression
ShapeConnectorConnection 1 Tube O.D. (inch)1/4
Tube MaterialCopper, Brass, J844 Type A & B Nylon TubingMaximum Operating Temperature200 °F
O-Ring MaterialFluorocarbonMinimum Operating Temperature-40 °F
Minimum Operating Pressure-40 psiMaximum Operating Pressure10 bar
DivisionFluid System Connectors DivisionSpecifications MetISO 6149-3, SAE 2244-3
Body MaterialBrass
