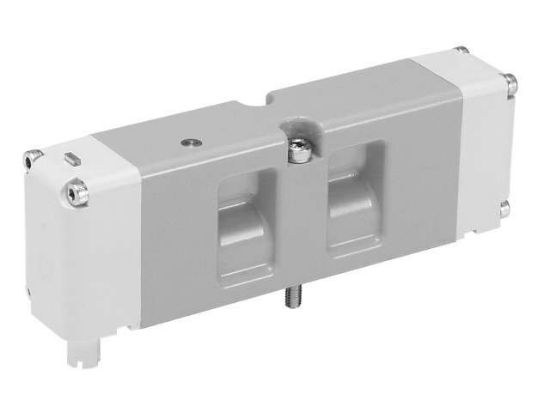

HA2VXLG023A - Isys ISO HA Series Double Solenoid 4-way 2-position Valve

Isys ISO HA Series Double Solenoid 4-way 2-position Valve

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU HA2VXLG023A

$131.55/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Pilot Supply	External	Override Type	Non-locking
Pkg Qty	1	Operator Type Detail	Double
CV Factor	1.1	Solenoid Voltage	120 VAC
Series Type	HA	Valve Positions	2-position
Pilot Supply	External	Trade Name	Isys
Parker Division	Pneumatic	Override Type	Non-locking
CV Factor	1.1	Valve Passages	4-way
ISO Interface	ISO 15407-2, Plug-in, Size 26mm (HA)	Series	Isys
Operator Type	Solenoid	Operator Type Detail	Double
Solenoid Voltage	120 VAC	Pneumatic Valve Type	Plug-in Valve
Parker Group	Automation
