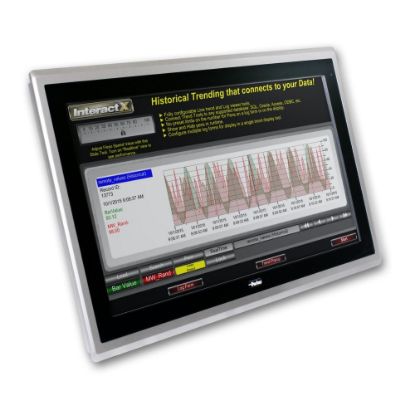

IX InteractX PowerStation
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's IX, installed with InteractX™ offers one of the most advanced development interface and graphics of any Windows HMI, with the lowest installed cost and development complexity. You'll be able to use InteractX right out of the box, without special IT skills or assistance. Its user-friendly, visual design interface includes styles and templates that enable multiple users to quickly build applications with a consistent “look and feel.” InteractX's toolbin allows custom tools or entire screens to be saved for drag and drop into other applications and easy sharing between designers.
Markets
• Pharmaceutical
• Food & Beverage
• Packaging
• General machinery
Features & Benefits
• New processing power- The quad core processor unlocks the power of InteractX. Communications to multiple PLC’s, machine HMIs or other devices are handled with ease as the rich graphics, animations, and critical data update faster than ever before.
• Industrial hardened in a sleek design - Every aspect of the IX design protects against common failure modes to provide long lasting and reliable operation. The IX’s fan-less and ventless design allows users to install-and-forget by avoiding the most common component failure in Industrial PCs: the fan. Coupled with a mechanically reinforced SSD, and intensive shock and vibration specifications, the IX is meant to withstand any industrial condition.
• Installed with InteractX Inside- InteractX leads the industry with breakthrough HMI graphics and built-in connectivity. Now with version 4.1, InteractX leads the way in the supervisory HMI category by dramatically reducing application development time and integration cost for your manufacturing operations InteractX 4.0 provides powerful trending and analysis tools that aggregate data from multiple machines or work-cells, and easily pulls Interact Xpress machine level HMI screens and data directly into its interface—without having to recreate applications or input tags!
Applications
• Supervisory HMI
• IIoT
| Action | SKU | Availability | Partner Available | Price | UOM | Certificates | Display Size | Interface Type | Specifications Met | Display Type | Display Size | Software | Operating System | CPU | Resolution | Input Voltage | System Memory | Backlight Life | Inputs/Outputs | Interface Type | Operating Humidity | Client Data Storage | Ingress Protection Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IXA-000-3N3-53 | Backordered | Backordered | POR | EA | CE, UL/cUL, IEC/EN61010, FCC Class A, RoHS, REACH | No Display | No display | CE | - | 10 | InteractX 4.0 | Windows Standard Embedded 7P | 1.86 GHz Quad Core | -- | 12 to 24 | 4GB DRAM (DDR3L 1600 MHz) | -- | Dual 1GB Ethernet | No Display | 10 to 90 % @ 40°C (non-condensing) | 64 GB SSD | IP65 (front bezel) | |
| IXA-000-3N3-55 | Backordered | Backordered | POR | EA | Class I Div 2, CE, UL/cUL, IEC/EN61010, FCC Class A, RoHS, REACH | No Display | No display | CE | - | 7 | InteractX 4.0 | Windows Standard Embedded 7P | 1.86 GHz Quad Core | -- | 12 to 24 | 4GB DRAM (DDR3L 1600 MHz) | -- | Dual 1GB Ethernet | No Display | 10 to 90 % @ 40°C (non-condensing) | 64 GB SSD | IP65 (front bezel) | |
| IXA-007-3R3-53 | Backordered | Backordered | POR | EA | CE, UL/cUL, IEC/EN61010, FCC Class A, RoHS, REACH | 7" Touchscreen | Analog resistive | IEC/EN61010 | - | 15 | InteractX 4.0 | Windows Standard Embedded 7P | 1.86 GHz Quad Core | 800 x 480 | 12 to 24 | 4GB DRAM (DDR3L 1600 MHz) | 40000 | Dual 1GB Ethernet | Analog Resistive | 10 to 90 % @ 40°C (non-condensing) | 64 GB SSD | IP65 (front bezel) | |
| IXA-007-3R3-55 | Backordered | Backordered | POR | EA | Class I Div 2, CE, UL/cUL, IEC/EN61010, FCC Class A, RoHS, REACH | 7" Touchscreen | Analog resistive | CE | - | 7 | InteractX 4.0 | Windows Standard Embedded 7P | 1.86 GHz Quad Core | 800 x 480 | 12 to 24 | 4GB DRAM (DDR3L 1600 MHz) | 40000 | Dual 1GB Ethernet | Analog Resistive | 10 to 90 % @ 40°C (non-condensing) | 64 GB SSD | IP65 (front bezel) | |
| IXA-010-3R3-53 | Backordered | Backordered | POR | EA | CE, UL/cUL, IEC/EN61010, FCC Class A, RoHS, REACH | 10.1" Touchscreen | Analog resistive | CE | - | 21 | InteractX 4.0 | Windows Standard Embedded 7P | 1.86 GHz Quad Core | 1280 x 800 | 12 to 24 | 4GB DRAM (DDR3L 1600 MHz) | 40000 | Dual 1GB Ethernet | Analog Resistive | 10 to 90 % @ 40°C (non-condensing) | 64 GB SSD | IP65 (front bezel) | |
| IXA-010-3R3-55 | Backordered | Backordered | POR | EA | Class I Div 2, CE, UL/cUL, IEC/EN61010, FCC Class A, RoHS, REACH | 10.1" Touchscreen | Analog resistive | CE | - | 7 | InteractX 4.0 | Windows Standard Embedded 7P | 1.86 GHz Quad Core | 1280 x 800 | 12 to 24 | 4GB DRAM (DDR3L 1600 MHz) | 40000 | Dual 1GB Ethernet | Analog Resistive | 10 to 90 % @ 40°C (non-condensing) | 64 GB SSD | IP65 (front bezel) | |
| IXA-015-3R3-53 | Backordered | Backordered | POR | EA | CE, UL/cUL, IEC/EN61010, FCC Class A, RoHS, REACH | 15.6" Touchscreen | Analog resistive | CE | - | No Display | InteractX 4.0 | Windows Standard Embedded 7P | 1.86 GHz Quad Core | 1366 x 768 | 12 to 24 | 4GB DRAM (DDR3L 1600 MHz) | 50000 | Dual 1GB Ethernet | Analog Resistive | 10 to 90 % @ 40°C (non-condensing) | 64 GB SSD | IP65 (front bezel) | |
| IXA-015-3R3-55 | Backordered | Backordered | POR | EA | Class I Div 2, CE, UL/cUL, IEC/EN61010, FCC Class A, RoHS, REACH | 15.6" Touchscreen | Analog resistive | CE | - | 7 | InteractX 4.0 | Windows Standard Embedded 7P | 1.86 GHz Quad Core | 1366 x 768 | 12 to 24 | 4GB DRAM (DDR3L 1600 MHz) | 50000 | Dual 1GB Ethernet | Analog Resistive | 10 to 90 % @ 40°C (non-condensing) | 64 GB SSD | IP65 (front bezel) | |
| IXA-022-3P3-53 | Backordered | Backordered | POR | EA | CE, UL/cUL, IEC/EN61010, FCC Class A, RoHS, REACH | 21.5" Touchscreen | Projective capacitive | CE | - | 7 | InteractX 4.0 | Windows Standard Embedded 7P | 1.86 GHz Quad Core | 1920 x 1080 | 12 to 24 | 4GB DRAM (DDR3L 1600 MHz) | 30000 | Dual 1GB Ethernet | Projective Capacitive | 10 to 90 % @ 40°C (non-condensing) | 64 GB SSD | IP65 (front bezel) | |
| IXA-022-3P3-55 | Backordered | Backordered | POR | EA | Class I Div 2, CE, UL/cUL, IEC/EN61010, FCC Class A, RoHS, REACH | 21.5" Touchscreen | Projective capacitive | CE | - | 7 | InteractX 4.0 | Windows Standard Embedded 7P | 1.86 GHz Quad Core | 1920 x 1080 | 12 to 24 | 4GB DRAM (DDR3L 1600 MHz) | 30000 | Dual 1GB Ethernet | Projective Capacitive | 10 to 90 % @ 40°C (non-condensing) | 64 GB SSD | IP65 (front bezel) | |
| IXA-022-3R3-53 | Backordered | Backordered | POR | EA | CE, UL/cUL, IEC/EN61010, FCC Class A, RoHS, REACH | 21.5" Touchscreen | Analog resistive | CE | - | 7 | InteractX 4.0 | Windows Standard Embedded 7P | 1.86 GHz Quad Core | 1920 x 1080 | 12 to 24 | 4GB DRAM (DDR3L 1600 MHz) | 30000 | Dual 1GB Ethernet | Analog Resistive | 10 to 90 % @ 40°C (non-condensing) | 64 GB SSD | IP65 (front bezel) | |
| IXA-022-3R3-55 | Backordered | Backordered | POR | EA | Class I Div 2, CE, UL/cUL, IEC/EN61010, FCC Class A, RoHS, REACH | 21.5" Touchscreen | Analog resistive | CE | - | 7 | InteractX 4.0 | Windows Standard Embedded 7P | 1.86 GHz Quad Core | 1920 x 1080 | 12 to 24 | 4GB DRAM (DDR3L 1600 MHz) | 30000 | Dual 1GB Ethernet | Analog Resistive | 10 to 90 % @ 40°C (non-condensing) | 64 GB SSD | IP65 (front bezel) |
