7212-251GY - JIFFY™ Push-On Multipurpose Oil Resistant Hose, Series 7212

Jiffy Push-On/Push Lock Oil Resistant Multipurpose Rubber Hose is designed to transfer air, mild chemicals, oil, water and refined fuels such as biodiesel, diesel, ethanol and gasoline in applications to 212°F and 300 psi, Series 7212.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	1493 in stock

SKU 7212-251GY

$2.44/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/4
Color	Gray	Maximum Working Pressure (psi)	300
Standard Pack Qty (ft)	700	Minimum Operating Temperature	-40 °F
Vacuum Pressure Rating	28 Inch-Hg	Design Factor	4:1
Media	Water	Minimum Bend Radius	76.2 mm
Cover Structure	Smooth	Inside Diameter	6.4 mm
Package Type	Reel	Weight	0.09 lb/ft
Cover Material	Chloroprene Rubber (CR)	Compatible Fitting	HY Series
Hose Inner Tube Material	Nitrile	Hose Reinforcement Material	1 Braid of Textile
Specifications Met	MSHA	Maximum Operating Pressure	20.7 bar
Maximum Operating Temperature	100 °C (Other Media)	Cover Color	Gray
Outside Diameter	0.494 inch

Customers who bought this item also bought

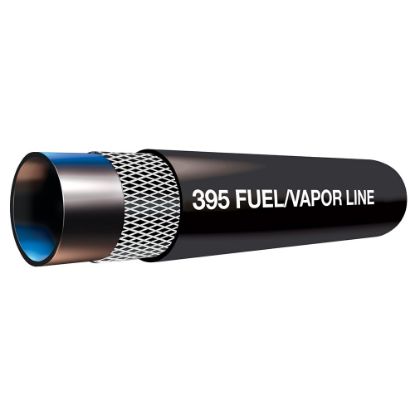

39551 - Fuel Line/Vapor Emission Hose, Series 395
