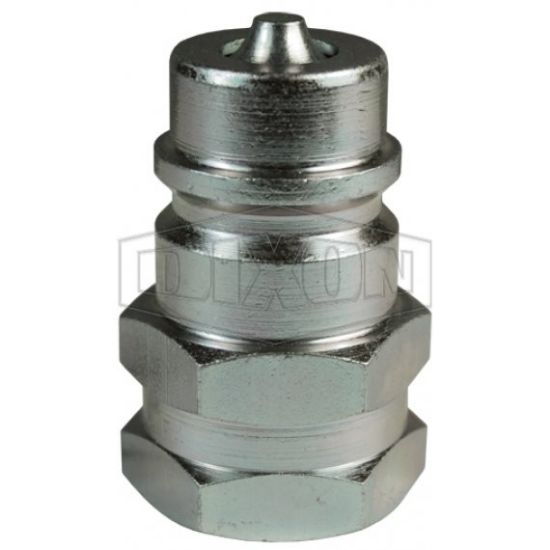

K4F4

Manufacturer: Dixon

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU K4F4

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Outside Diameter	1.23 Inch
Material	Steel	Series	DQC K
Pressure With Steel Couple	4000 PSI Max Operating, 16500 PSI burst	Thread Size	1/2 Inch 14
Length	1.77 Inch	Thread	Female NPTF
Burst Pressure	16500 PSI	Body Size	1/2 Inch
Maximum Temperature Range	250 °F	Minimum Temperature Range	-40 °F
Hex	1 1/16 Inch	Maximum Operating Pressure	4000 PSI
Connection	Female Pipe Thread	Interchange	ISO-A 5600
