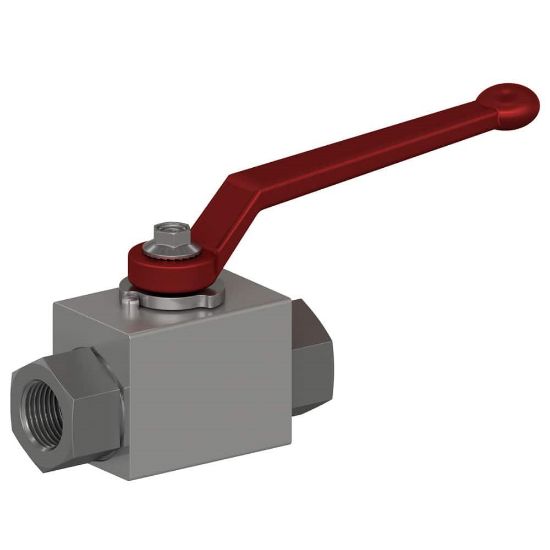

KH1/4CFX

Availability:	Backordered Estimated Lead Time: 99 days
Partner Available:	Backordered

SKU KH1/4CFX

$84.74/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

2/2-way ball valves interrupt or facilitate the medium flow. These valves, available worldwide, can be optionally equipped with a locking device to avoid unauthorized opening and shut-off; they support the safety of the entire system. Ball valves with a detent position or fastening bore are also part of the programme.

Applications:

Suitable for general hydraulic applications.

Features:

Excellent sealing and easy operation extend the safety of the entire hydraulic system, of which the 3/3-way ball valves form a part.

2/2-way ball valves guarantee the safety of the whole hydraulic unit because of their consistent quality.

2/2-way ball valves are available in steel and stainless steel; there is a broad range of seals e.g. NBR and POM. This variety of material helps to meet customer requirements perfectly.

The surface offers very high corrosion protection, which of course extends the life-cycle of the product.

Markets:

Products specifications

Attribute name	Attribute value
UOM	EA	Max. Operating Temperature	212 °F, 100 °C
Connection Size	1/4 Inch	Min. Operating Temperature	14 °F, -10 °C
Shape	Straight	Max. Operating Pressure	500 Bar
Parker Division	Hose Products	Configuration	2-Way BSPP
Parker Group	Fluid Connector	Seal Material	NBR
