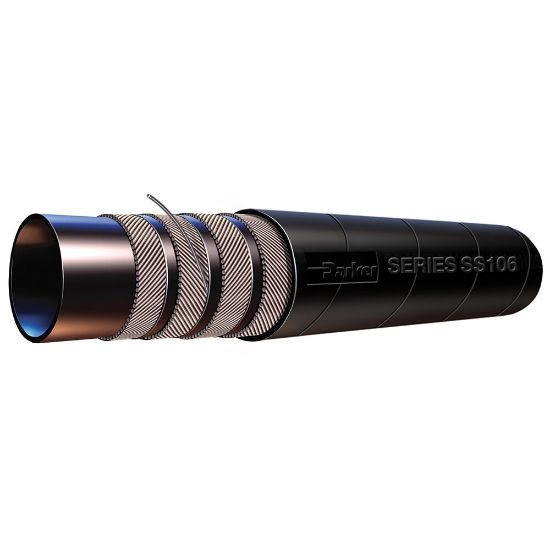

SS106-3000 - Large Diameter Liquid Petroleum Gas LPG Hose, Series SS106

Large Diameter Liquid Petroleum Gas LPG Hose is designed for bulk/high volume supply and transfer of propane in applications to 140°F and 350 psi, Series SS106

Availability:	Backordered Estimated Lead Time: 23 days
Partner Available:	100 in stock

SKU SS106-3000

$66.47/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3
Hose Inner Tube Material	Black	Inside Diameter	3 inch
Maximum Operating Temperature	82 °C	Minimum Bend Radius	n/a
Length per Package	100 ft	Outside Diameter	3.740 inch
Specifications Met	ISO 2928 (E)	Cover Structure	Wrapped
Weight	2.53 lb	Minimum Operating Temperature	-40 °C
Hose Reinforcement Material	4 Plies of Textile with Static Wire	Media	Propane
Cover Color	Black	Package Type	Coil
Cover Material	Nitrile	Maximum Operating Pressure	24.1 bar

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
