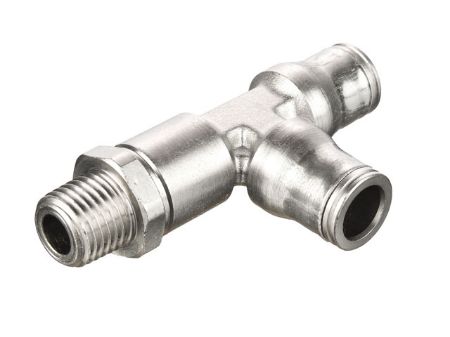

Legris LF3600 Series 3603 - Metric-BSPT
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker Legris LF3600 Series Metric-BSPT Male Run Tee Swivel, Nickel Plated Brass Push-to-Connect fittings offer the robustness, reliability and resistance to industrial fluids for the most demanding environments.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Outer Diameter 1 | Thread 1 | Parker Group | Parker Division | Material | Operating Temperature | Outer Diameter 1 Inch/mm | Pressure Range | Material - Seal | Configuration Type | Thread 1 Type | Inch/Metric | Outer Diameter 1 | Configuration Sub-Type | Thread 1 | Trade Name | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3603 04 10 | Backordered | Backordered | $18.64/each | EA | EA | 4 mm | 1/8 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Tube to Male | BSPT | Metric-BSPT | 4 mm | Male Run Tee Swivel | 1/8 BSPT | Legris | Legris LF3600 | |
| 3603 06 10 | Backordered | Backordered | $19.24/each | EA | EA | 6 mm | 1/8 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Tube to Male | BSPT | Metric-BSPT | 6 mm | Male Run Tee Swivel | 1/8 BSPT | Legris | Legris LF3600 | |
| 3603 06 13 | Backordered | Backordered | $20.34/each | EA | EA | 6 mm | 1/4 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Tube to Male | BSPT | Metric-BSPT | 6 mm | Male Run Tee Swivel | 1/4 BSPT | Legris | Legris LF3600 | |
| 3603 08 10 | Backordered | Backordered | $22.66/each | EA | EA | 8 mm | 1/8 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Tube to Male | BSPT | Metric-BSPT | 8 mm | Male Run Tee Swivel | 1/8 BSPT | Legris | Legris LF3600 | |
| 3603 08 13 | Backordered | 1 Limited Stock | $22.56/each | EA | EA | 8 mm | 1/4 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Tube to Male | BSPT | Metric-BSPT | 8 mm | Male Run Tee Swivel | 1/4 BSPT | Legris | Legris LF3600 | |
| 3603 10 13 | Backordered | Backordered | $34.84/each | EA | EA | 10 mm | 1/4 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Tube to Male | BSPT | Metric-BSPT | 10 mm | Male Run Tee Swivel | 1/4 BSPT | Legris | Legris LF3600 | |
| 3603 10 17 | Backordered | Backordered | $36.92/each | EA | EA | 10 mm | 3/8 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Tube to Male | BSPT | Metric-BSPT | 10 mm | Male Run Tee Swivel | 3/8 BSPT | Legris | Legris LF3600 | |
| 3603 12 17 | Backordered | Backordered | $39.56/each | EA | EA | 12 mm | 3/8 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Tube to Male | BSPT | Metric-BSPT | 12 mm | Male Run Tee Swivel | 3/8 BSPT | Legris | Legris LF3600 | |
| 3603 14 21 | Backordered | Backordered | $46.62/each | EA | EA | 14 mm | 1/2 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Tube to Male | BSPT | Metric-BSPT | 14 mm | Male Run Tee Swivel | 1/2 BSPT | Legris | Legris LF3600 |
