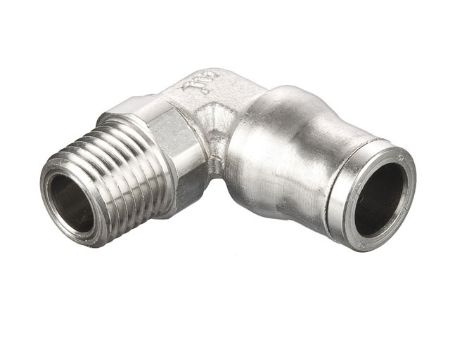

Legris LF3600 Series 3609 - Metric-BSPT
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker Legris LF3600 Series Metric-BSPT Male Elbow 90°, Nickel Plated Brass Push-to-Connect fittings offer the robustness, reliability and resistance to industrial fluids for the most demanding environments.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Outer Diameter 1 | Thread 1 | Parker Group | Parker Division | Material | Operating Temperature | Outer Diameter 1 Inch/mm | Pressure Range | Material - Seal | Configuration Sub-Type | Configuration Type | Thread 1 Type | Inch/Metric | Outer Diameter 1 | Thread 1 | Trade Name | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3609 04 10 | Backordered | 1 Limited Stock | $13.81/each | EA | EA | 4 mm | 1/8 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | Tube to Male | BSPT | Metric-BSPT | 4 mm | 1/8 BSPT | Legris | Legris LF3600 | |
| 3609 04 13 | Backordered | 10 in stock | $16.40/each | EA | EA | 4 mm | 1/4 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | Tube to Male | BSPT | Metric-BSPT | 4 mm | 1/4 BSPT | Legris | Legris LF3600 | |
| 3609 06 10 | Backordered | 10 in stock | $15.01/each | EA | EA | 6 mm | 1/8 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | Tube to Male | BSPT | Metric-BSPT | 6 mm | 1/8 BSPT | Legris | Legris LF3600 | |
| 3609 06 13 | Backordered | 5 in stock | $16.81/each | EA | EA | 6 mm | 1/4 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | Tube to Male | BSPT | Metric-BSPT | 6 mm | 1/4 BSPT | Legris | Legris LF3600 | |
| 3609 08 10 | Backordered | 5 in stock | $16.59/each | EA | EA | 8 mm | 1/8 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | Tube to Male | BSPT | Metric-BSPT | 8 mm | 1/8 BSPT | Legris | Legris LF3600 | |
| 3609 08 13 | Backordered | 14 in stock | $16.59/each | EA | EA | 8 mm | 1/4 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | Tube to Male | BSPT | Metric-BSPT | 8 mm | 1/4 BSPT | Legris | Legris LF3600 | |
| 3609 08 17 | Backordered | 30 in stock | $18.40/each | EA | EA | 8 mm | 3/8 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | Tube to Male | BSPT | Metric-BSPT | 8 mm | 3/8 BSPT | Legris | Legris LF3600 | |
| 3609 10 13 | Backordered | 22 in stock | $26.40/each | EA | EA | 10 mm | 1/4 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | Tube to Male | BSPT | Metric-BSPT | 10 mm | 1/4 BSPT | Legris | Legris LF3600 | |
| 3609 10 17 | Backordered | 18 in stock | $26.75/each | EA | EA | 10 mm | 3/8 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | Tube to Male | BSPT | Metric-BSPT | 10 mm | 3/8 BSPT | Legris | Legris LF3600 | |
| 3609 12 13 | Backordered | Backordered | $33.21/each | EA | EA | 12 mm | 1/4 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | Tube to Male | BSPT | Metric-BSPT | 12 mm | 1/4 BSPT | Legris | Legris LF3600 | |
| 3609 12 17 | Backordered | 40 in stock | $33.32/each | EA | EA | 12 mm | 3/8 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | Tube to Male | BSPT | Metric-BSPT | 12 mm | 3/8 BSPT | Legris | Legris LF3600 | |
| 3609 12 21 | Backordered | Backordered | $27.82/each | EA | EA | 12 mm | 1/2 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | Tube to Male | BSPT | Metric-BSPT | 12 mm | 1/2 BSPT | Legris | Legris LF3600 | |
| 3609 14 17 | Backordered | Backordered | $32.68/each | EA | EA | 14 mm | 3/8 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | Tube to Male | BSPT | Metric-BSPT | 14 mm | 3/8 BSPT | Legris | Legris LF3600 | |
| 3609 14 21 | Backordered | Backordered | $34.37/each | EA | EA | 14 mm | 1/2 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | Tube to Male | BSPT | Metric-BSPT | 14 mm | 1/2 BSPT | Legris | Legris LF3600 |
