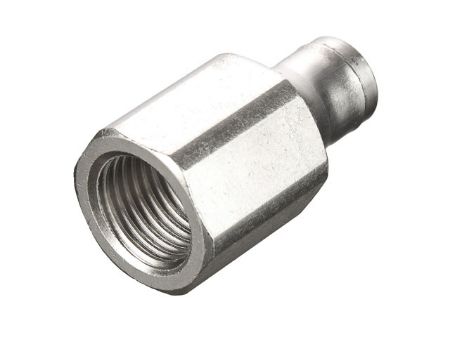

Legris LF3600 Series 3614 - Metric-BSPP/Metric
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker Legris LF3600 Series Metric-BSPP/Metric Female Connector, Nickel Plated Brass Push-to-Connect fittings offer the robustness, reliability and resistance to industrial fluids for the most demanding environments.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Outer Diameter 1 | Thread 1 | Parker Group | Parker Division | Material | Operating Temperature | Outer Diameter 1 Inch/mm | Pressure Range | Material - Seal | Outer Diameter 1 | Configuration Type | Thread 1 Type | Inch/Metric | Thread 1 | Trade Name | Configuration Sub-Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3614 04 10 | Backordered | Backordered | $11.56/each | EA | EA | 4 mm | 1/8 BSPP | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | 4 mm | Tube to Female | BSPP | Metric-BSPP/Metric | 1/8 BSPP | Legris | Female Connector | Legris LF3600 | |
| 3614 04 13 | Backordered | Backordered | $18.04/each | EA | EA | 4 mm | 1/4 BSPP | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | 4 mm | Tube to Female | BSPP | Metric-BSPP/Metric | 1/4 BSPP | Legris | Female Connector | Legris LF3600 | |
| 3614 04 19 | Backordered | Backordered | $19.31/each | EA | EA | 4 mm | M5x0.8 Metric | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | 4 mm | Tube to Female | Metric | Metric-BSPP/Metric | M5x0.8 Metric | Legris | Female Connector | Legris LF3600 | |
| 3614 06 10 | Backordered | Backordered | $15.64/each | EA | EA | 6 mm | 1/8 BSPP | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | 6 mm | Tube to Female | BSPP | Metric-BSPP/Metric | 1/8 BSPP | Legris | Female Connector | Legris LF3600 | |
| 3614 06 13 | Backordered | Backordered | $12.78/each | EA | EA | 6 mm | 1/4 BSPP | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | 6 mm | Tube to Female | BSPP | Metric-BSPP/Metric | 1/4 BSPP | Legris | Female Connector | Legris LF3600 | |
| 3614 08 10 | Backordered | Backordered | $15.22/each | EA | EA | 8 mm | 1/8 BSPP | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | 8 mm | Tube to Female | BSPP | Metric-BSPP/Metric | 1/8 BSPP | Legris | Female Connector | Legris LF3600 | |
| 3614 08 13 | Backordered | Backordered | $13.74/each | EA | EA | 8 mm | 1/4 BSPP | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | 8 mm | Tube to Female | BSPP | Metric-BSPP/Metric | 1/4 BSPP | Legris | Female Connector | Legris LF3600 | |
| 3614 10 17 | Backordered | Backordered | $23.65/each | EA | EA | 10 mm | 3/8 BSPP | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | 10 mm | Tube to Female | BSPP | Metric-BSPP/Metric | 3/8 BSPP | Legris | Female Connector | Legris LF3600 | |
| 3614 12 17 | Backordered | Backordered | $22.80/each | EA | EA | 12 mm | 3/8 BSPP | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | 12 mm | Tube to Female | BSPP | Metric-BSPP/Metric | 3/8 BSPP | Legris | Female Connector | Legris LF3600 | |
| 3614 12 21 | Backordered | Backordered | $29.96/each | EA | EA | 12 mm | 1/2 BSPP | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | 12 mm | Tube to Female | BSPP | Metric-BSPP/Metric | 1/2 BSPP | Legris | Female Connector | Legris LF3600 |
