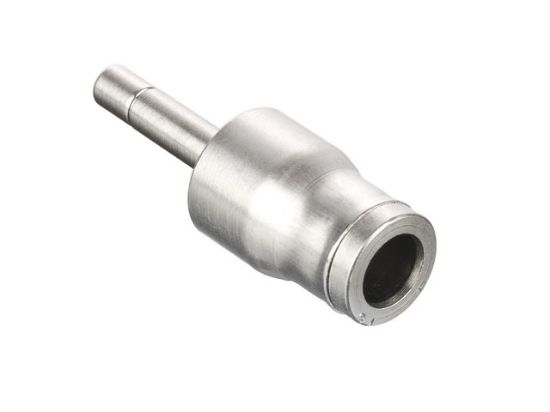

3667 06 56 - Legris LF3600 Series 3667 - Metric-Inch

Metric-Inch Plug-in Adapter - Push-to-Connect Fitting

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU 3667 06 56

$12.46/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Outer Diameter 2	1/4 Inch	Outer Diameter 1	6 mm
Parker Group	Fluid Connector	Parker Division	Fluid Systems Connector (Brass Products)
Configuration Type	Tube to Tube	Material	Nickel Plated Brass
Operating Temperature	-4˚ to +302˚F	Outer Diameter 1 Inch/mm	mm
Pressure Range	7 to 290 psi	Material - Seal	FKM Fluoroelastomer
Outer Diameter 2 Inch/mm	Inch	Outer Diameter 2	1/4 Inch
Inch/Metric	Metric-Inch	Outer Diameter 1	6 mm
Trade Name	Legris	Series	Legris LF3600
Configuration Sub-Type	Plug-in Adapter

Product resources

Legris Push-in Fittings (PDF)
