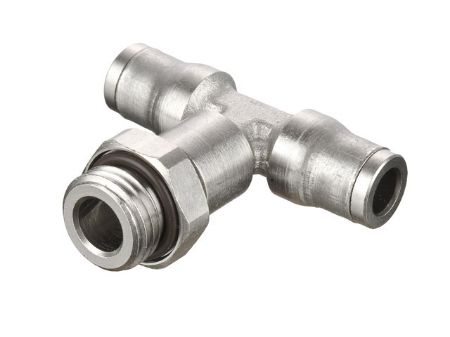

Legris LF3600 Series 3698 - Metric-BSPP/Metric
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker Legris LF3600 Series Metric-BSPP/Metric Male Branch Tee Swivel, Nickel Plated Brass Push-to-Connect fittings offer the robustness, reliability and resistance to industrial fluids for the most demanding environments.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Outer Diameter 1 | Thread 1 | Parker Group | Parker Division | Material | Operating Temperature | Outer Diameter 1 Inch/mm | Pressure Range | Material - Seal | Configuration Type | Thread 1 Type | Outer Diameter 1 | Inch/Metric | Thread 1 | Configuration Sub-Type | Trade Name | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3698 04 10 | Backordered | Backordered | $19.07/each | EA | EA | 4 mm | 1/8 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Tube to Male | BSPT | 4 mm | Metric-BSPP/Metric | 1/8 BSPT | Male Branch Tee Swivel | Legris | Legris LF3600 | |
| 3698 04 19 | Backordered | Backordered | $20.83/each | EA | EA | 4 mm | M5x0.8 Metric | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Tube to Male | Metric | 4 mm | Metric-BSPP/Metric | M5x0.8 Metric | Male Branch Tee Swivel | Legris | Legris LF3600 | |
| 3698 06 10 | Backordered | Backordered | $19.36/each | EA | EA | 6 mm | 1/8 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Tube to Male | BSPT | 6 mm | Metric-BSPP/Metric | 1/8 BSPT | Male Branch Tee Swivel | Legris | Legris LF3600 | |
| 3698 06 13 | Backordered | Backordered | $22.02/each | EA | EA | 6 mm | 1/4 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Tube to Male | BSPT | 6 mm | Metric-BSPP/Metric | 1/4 BSPT | Male Branch Tee Swivel | Legris | Legris LF3600 | |
| 3698 08 10 | Backordered | Backordered | $21.69/each | EA | EA | 8 mm | 1/8 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Tube to Male | BSPT | 8 mm | Metric-BSPP/Metric | 1/8 BSPT | Male Branch Tee Swivel | Legris | Legris LF3600 | |
| 3698 08 13 | Backordered | 2 Limited Stock | $22.07/each | EA | EA | 8 mm | 1/4 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Tube to Male | BSPT | 8 mm | Metric-BSPP/Metric | 1/4 BSPT | Male Branch Tee Swivel | Legris | Legris LF3600 | |
| 3698 10 13 | Backordered | Backordered | $30.36/each | EA | EA | 10 mm | 1/4 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Tube to Male | BSPT | 10 mm | Metric-BSPP/Metric | 1/4 BSPT | Male Branch Tee Swivel | Legris | Legris LF3600 | |
| 3698 12 17 | Backordered | Backordered | $39.39/each | EA | EA | 12 mm | 3/8 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Tube to Male | BSPT | 12 mm | Metric-BSPP/Metric | 3/8 BSPT | Male Branch Tee Swivel | Legris | Legris LF3600 | |
| 3698 14 21 | Backordered | Backordered | $49.44/each | EA | EA | 14 mm | 1/2 BSPT | Fluid Connector | Fluid Systems Connector (Brass Products) | Nickel Plated Brass | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Tube to Male | BSPT | 14 mm | Metric-BSPP/Metric | 1/2 BSPT | Male Branch Tee Swivel | Legris | Legris LF3600 |
