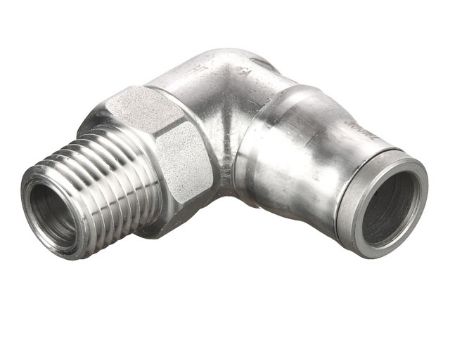

Legris LF3800 Series 3889 - Inch
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker Legris LF3800 Series Inch Male Elbow 90°, Stainless Steel Push-to-Connect fittings offer the robustness, reliability and resistance to industrial fluids for the most demanding environments.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Outer Diameter 1 | Thread 1 | Parker Group | Inch/Metric | Material | Parker Division | Outer Diameter 1 Inch/mm | Operating Temperature | Pressure Range | Material - Seal | Configuration Sub-Type | Outer Diameter 1 | Configuration Type | Thread 1 | Thread 1 Type | Trade Name | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3889 56 11 | Backordered | 5 in stock | $101.58/each | EA | EA | 1/4 Inch | 1/8 NPT | Fluid Connector | Inch | Stainless Steel | Fluid Systems Connector (Brass Products) | Inch | -4˚ to +302˚F | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | 1/4 Inch | Tube to Male | 1/8 NPT | NPT | Legris | Legris LF3800 | |
| 3889 56 14 | Backordered | Backordered | $113.74/each | EA | EA | 1/4 Inch | 1/4 NPT | Fluid Connector | Inch | Stainless Steel | Fluid Systems Connector (Brass Products) | Inch | -4˚ to +302˚F | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | 1/4 Inch | Tube to Male | 1/4 NPT | NPT | Legris | Legris LF3800 | |
| 3889 60 14 | Backordered | Backordered | $185.14/each | EA | EA | 3/8 Inch | 1/4 NPT | Fluid Connector | Inch | Stainless Steel | Fluid Systems Connector (Brass Products) | Inch | -4˚ to +302˚F | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | 3/8 Inch | Tube to Male | 1/4 NPT | NPT | Legris | Legris LF3800 | |
| 3889 60 18 | Backordered | Backordered | $195.80/each | EA | EA | 3/8 Inch | 3/8 NPT | Fluid Connector | Inch | Stainless Steel | Fluid Systems Connector (Brass Products) | Inch | -4˚ to +302˚F | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | 3/8 Inch | Tube to Male | 3/8 NPT | NPT | Legris | Legris LF3800 | |
| 3889 62 18 | Backordered | Backordered | $231.85/each | EA | EA | 1/2 Inch | 3/8 NPT | Fluid Connector | Inch | Stainless Steel | Fluid Systems Connector (Brass Products) | Inch | -4˚ to +302˚F | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | 1/2 Inch | Tube to Male | 3/8 NPT | NPT | Legris | Legris LF3800 | |
| 3889 62 22 | Backordered | Backordered | $242.92/each | EA | EA | 1/2 Inch | 1/2 NPT | Fluid Connector | Inch | Stainless Steel | Fluid Systems Connector (Brass Products) | Inch | -4˚ to +302˚F | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | 1/2 Inch | Tube to Male | 1/2 NPT | NPT | Legris | Legris LF3800 |
