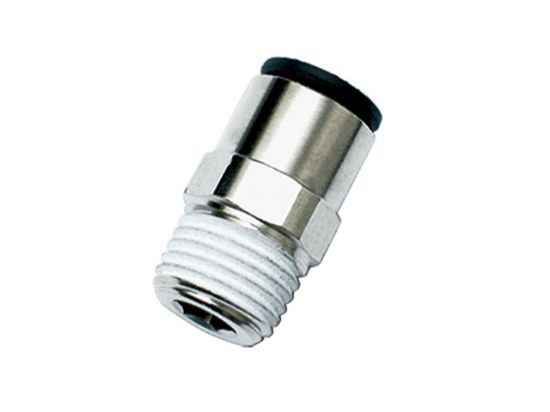

3175 53 10 - Legris Metal 3175 - Inch-BSPT

Male Connector Push-to-Connect Instant Pneumatic Fitting

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU 3175 53 10

$10.53/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Pkg Qty/UOM	10 EA	Pkg Qty	10
Outer Diameter 1	1/8 Inch	Thread 1	1/8 BSPT
Material	Nickel-Plated Brass	Parker Group	Fluid Connector
Parker Division	Fluid Systems Connector (Brass Products)	Outer Diameter 1 Inch/mm	Inch
Configuration Type	Tube to Male	Thread 1 Type	BSPT
Thread 1	1/8 BSPT	Outer Diameter 1	1/8 Inch
Series	Legris LF3000	Trade Name	Legris
Material	Nickel-Plated Brass	Configuration Sub-Type	Male Connector
Inch/Metric	Inch-BSPT

Product resources

Legris Push-in Fittings (PDF)
