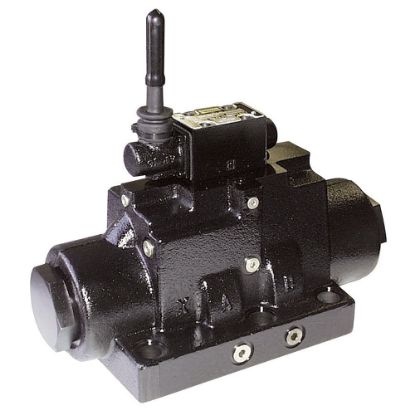

Lever Operated Directional Control Valve - D101VL Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s D101VL directional control valves are available in 2 or 3-position styles. These valves are manifold or subplate mounted which conform to NFPA’s D10, CETOP 10 mounting pattern.
Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities
Features/Benefits:
• Low pressure drop design
• Low force required to shift spool
• Hardened spools provide long life
Applications:
• Suitable for general hydraulic applications
Read More...Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities
Features/Benefits:
• Low pressure drop design
• Low force required to shift spool
• Hardened spools provide long life
Applications:
• Suitable for general hydraulic applications
| Action | SKU | Availability | Partner Available | Price | UOM | Maximum Operating Pressure | Mounting Type | Maximum Flow Rate | Size | Maximum Operating Pressure | Seal Material | Maximum Operating Temperature | Minimum Operating Temperature | Options | Mounting Type | Body Material | Spool Code | Pilot Inlet / Drain Locations | Size | Weight | Valve Type | Actuation Type | Spool Position | Maximum Flow Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D101VL001B4N | Backordered | Backordered | $4,938.36/each | EA | 3000 PSI | Subplate | 250 GPM | NFPA D08, CETOP 8, NG32 | 3000 psi | Nitrile | 140 | -4 | n/a | Subplate | Gray Iron | 4-Way | Internal Pilot / Internal Drain | NG32 | 77.2 | Lever Operated Directional Control Valve | Lever | Spring Offset to Center | 250 Gal/min | |
| D101VL001C4N | Backordered | Backordered | $5,306.28/each | EA | 3000 PSI | Subplate | 250 GPM | NFPA D08, CETOP 8, NG32 | 3000 | Nitrile | 140 | -4 | n/a | Subplate | Gray Iron | 4-Way | Internal Pilot / Internal Drain | NFPA D08 | 77.2 | Lever Operated Directional Control Valve | Lever | Double Operator | 250 | |
| D101VL001C4V | Backordered | Backordered | $5,433.96/each | EA | 3000 PSI | Subplate | 250 GPM | NFPA D08, CETOP 8, NG32 | 3000 | Fluorocarbon | 140 | -4 | n/a | Subplate | Gray Iron | 4-Way | Internal Pilot / Internal Drain | NFPA D08 | 77.2 | Lever Operated Directional Control Valve | Lever | Double Operator | 250 |
