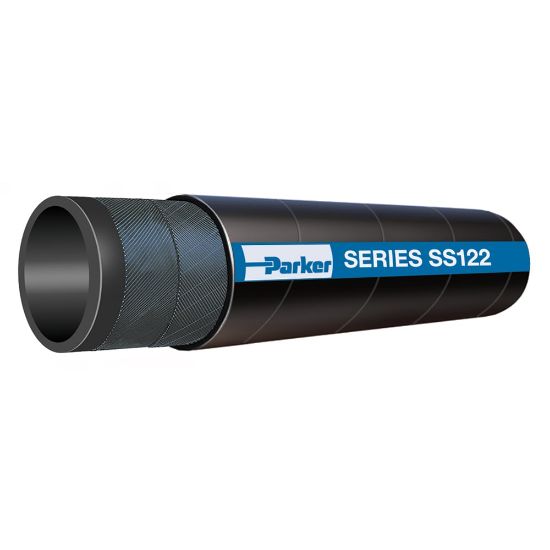

SS122-1500 - Lightweight Water Jetting Hose, Series SS122

Note: This product is no longer available - please contact us for further assistance

Availability:	Backordered Estimated Lead Time: 23 days
Partner Available:	Backordered

SKU SS122-1500

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1-1/2
Maximum Operating Pressure	34.5 bar	Size	-24
Minimum Bend Radius	n/a	Hose Reinforcement Material	Mutiple Plies of Textile
Maximum Operating Temperature	82 °C	Minimum Operating Temperature	-40 °C
Cover Material	Styrene Butadiene Rubber (SBR)	Outside Diameter	50 mm
Length per Package	100 ft	Cover Structure	Wrapped
Nominal Hose Inside Diameter	40 mm	Media	Water
Inside Diameter	38.1 mm	Hose Inner Tube Material	Styrene Butadiene Rubber (SBR)
Weight	0.29 kg/ft	Base number	SS122
Cover Color	Black

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
