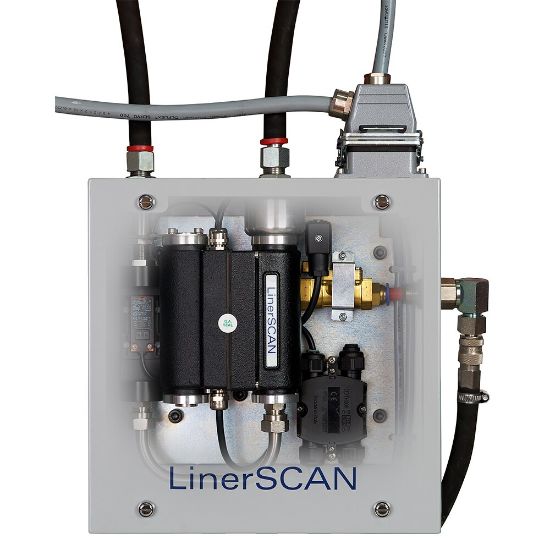

LinerSCAN - Cylinder Liner Monitor - FG-K17400-KW

Name: LinerSCAN - Cylinder Liner Monitor - FG-K17400-KW
SKU: FG-K17400-KW

Parker LinerScan system is designed to remove the uncertainty of cylinder damage resulting from low fuel quality, slow steaming, low sulphur levels, lower oil feed rates and cylinder oil formulation changes.

Availability:

Backordered

SKU FG-K17400-KW

POR

Products specifications

Attribute name	Attribute value
UOM	EA	Options	one per cylinder
Operating Pressure	10	Port Type	BSP
Minimum Fluid Temperature	10	Height	300
Sensing Method	Ferrography	Industry	Marine
Division	Hydraulic & Industrial Process Filtration Division EMEA	Weight	17
Technology	Filtration	Length	300
Operating Temperature	0 to 65	Body Material	Mild Steel
Port Size	1/2	Specifications Met	CE Certification
Division	Hydraulic & Industrial Process Filtration Division EMEA	Width	94
Signal Output	4 to 20	Maximum Fluid Temperature	65
Materials of Construction	Mild Steel	Air Inlet Connection Size	1/2” BSP
Product Type	Condition Monitor	Electrical Requirements	24
For Fluid Type	Cylinder Oil	Product Style	Particle Detector/Counter
Cycle Time	30	Flow Rate	> 30
Communication Interface	CANbus	Brand	Kittiwake
Ingress Protection Rating	IP65	Seal Material	Fluorcarbon

Product resources

Literature and Reference Materials

BROCHURE-LinerSCAN - Cylinder Liner Monitor (PDF)
