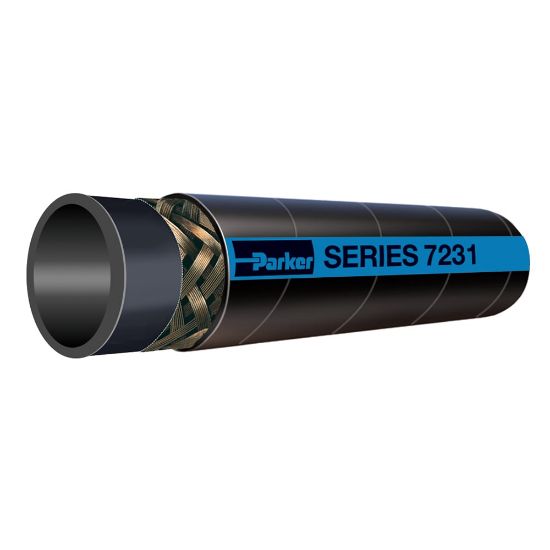

7231-1251 - Liquid Petroleum Gas LPG Hose, Series 7231

Parker's Series 7231 LPG Hose provides superior service for LPG/propane supply and transfer applications. This hose provides a durable vibration dampening connector between metal piping on vehicles and bulk loading performance.

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	150 in stock

SKU 7231-1251

$55.07/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1-1/4
Maximum Working Pressure (psi)	350	Minimum Operating Temperature	-40 °F
Maximum Operating Pressure	350 psi	Length per Package	100 ft
Package Type	Carton	Cover Color	Black
Maximum Operating Temperature	180 °F	Inside Diameter	1-1/4 inch
Hose Inner Tube Material	Black	Outside Diameter	1.750 inch
Compatible Fitting	43 Series	Cover Material	Chloroprene Rubber (CR)
Cover Structure	Perforated	Media	LPG
Specifications Met	CSA 8.1, Type I	Weight	0.97 lb/ft
Minimum Bend Radius	16.5 inch	Hose Reinforcement Material	1 Braid of Stainless Steel Wire

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
