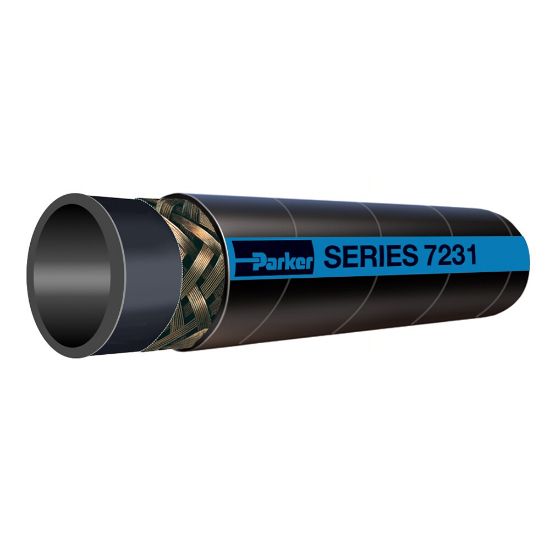

7231-2002K - Liquid Petroleum Gas LPG Hose, Series 7231

Parker's Series 7231 LPG Hose provides superior service for LPG/propane supply and transfer applications. This hose provides a durable vibration dampening connector between metal piping on vehicles and bulk loading performance.

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	2 Limited Stock

SKU 7231-2002K

$121.20/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	2
Maximum Working Pressure (psi)	350	Minimum Operating Temperature	-40 °F
Package Type	Carton	Cover Color	Black
Compatible Fitting	43 Series	Inside Diameter	50.8 mm
Cover Material	Chloroprene Rubber (CR)	Hose Inner Tube Material	Nitrile
Maximum Operating Temperature	82 °C	Maximum Operating Pressure	24.1 bar
Cover Structure	Perforated	Media	LPG
Specifications Met	CSA 8.1, Type I	Weight	1.87 lb/ft
Outside Diameter	66.7 mm	Length per Package	150 ft
Minimum Bend Radius	635 mm	Hose Reinforcement Material	2 Braids of Stainless Steel Wire
