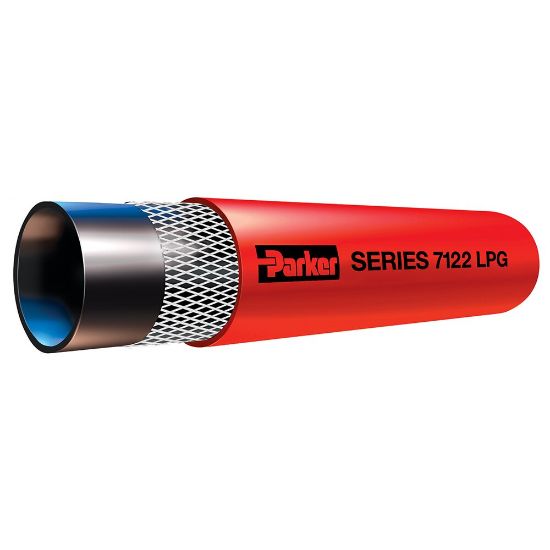

7122-38200 - Liquid Petroleum Gas Vapor Hose, Series 7122

Liquid Petroleum Gas Vapor Hose is designed for light duty propane vapor line service light duty in applications to 140°F and 125 psi, Series 7122

Availability:	Backordered Estimated Lead Time: 98 days
Partner Available:	Backordered

SKU 7122-38200

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/8
Maximum Working Pressure (psi)	125	Specifications Met	N/A
Inside Diameter	3/8 inch	Weight	0.22 kg/m
Cover Color	Red	Hose Reinforcement Material	2 Plies of Textile
Package Type	Reel	Maximum Operating Temperature	160 °F
Maximum Operating Pressure	125 psi	Cover Material	Chloroprene Rubber (CR)
Compatible Fitting	HY Series	Hose Inner Tube Material	Nitrile
Minimum Bend Radius	3.8 inch	Minimum Operating Temperature	-29 °C
Outside Diameter	0.656 inch	Length per Package	700 ft
Media	Propane (Vapor Only)	Cover Structure	Perforated

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
