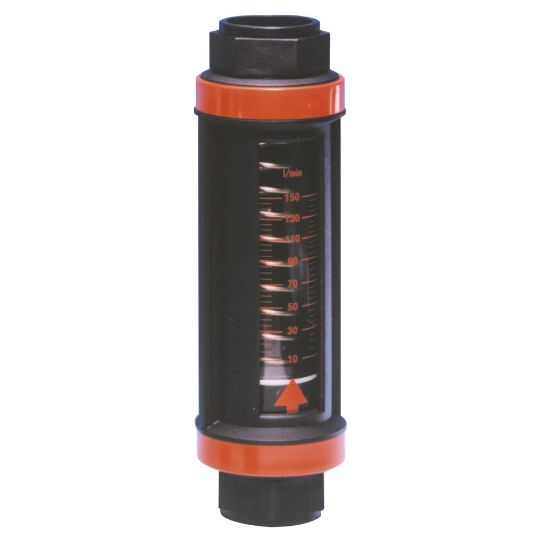

EF7731110120 - Low Pressure Mechanical Flowmeter – Easiflow

The Easiflow line comprises a range of highly economical, inline mechanical flowmeters that provide visual indication of fluid flow in hydraulic systems. Capable of measuring flows ranging from 1 to 150 L/MIN. Maximum allowable working pressure: 10 bar.

Availability:	Backordered Estimated Lead Time: 49 days
Partner Available:	Backordered

SKU EF7731110120

$472.06/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Switch Type	No Switch
For Fluid Type	Oil	Flow Rate	1 to 15 l/min
Communication Interface	n/a	Length	196 mm
Product Style	Flow Meter	Maximum Fluid Temperature	+80 °C
Port Type	BSP	Industry	Off-road Machinery
Body Material	Glass Filled Nylon	Sensing Method	Variable Oriface Flowmeter
Ingress Protection Rating	N/A	Cycle Time	n/a
Height	60 mm	Specifications Met	Pressure Directive
For Fluid Type	Water	Operating Humidity	n/a
Accuracy	+/- 5% FSD	Seal Material	Nitrile
Minimum Fluid Temperature	+5 °C	Materials of Construction	Borosilicate Glass
Flow Rate	1 to 15 L/min	Signal Output	n/a
Diameter	60 mm	ATEX Specifications Met	n/a
Electrical Requirements	n/a	Operating Pressure	145 psi
Port Size	1 inch

Product resources

Literature and Reference Materials

Easiflow_Flowmeters_bulletin.pdf (PDF)
